Crack Detection in 2.5L Cylinders and Heads

[jbranch]

The engine I am rebuilding is a 2.5L removed from a 1999 Boxster with approximately 80K miles. I had some initial concerns about engine damage due to an overheating event, but, after seeing the engine apart, those concerns are rapidly going away. I did feel this was a good time to check the cylinders and heads for cracking since, as most of you know, this type of engine has a history of crack induced failures. Better to find it now when I might be able to do something about it than later when it ruins the entire block. I used two testing methods to search for cracks: dye penetrant and microscopic examination. I wanted to share some of what I found with the forum and invite your comments and critiques. I’ve never done any of this before so view it with that in mind.

For those of you who are not familiar with dye penetrant testing, it involves spraying a special red dye on a metal surface to be tested, letting the dye remain on the surface for 20 to 30 minutes so it can penetrate into any cracks, wiping the surface clean of any dye, spraying the surface with a special developer which is white in color and designed to pull the dye out of the cracks, and then visually examining the surface. After about 5 minutes, cracks, if there are any, should show up as a distinct red line. For the microscopic examination, I used a handheld digital microscope (see photo) that will supposedly magnify 1000x. I don’t know if that is true, but I do believe I got at least 800x. This device is relatively inexpensive (if I remember right, it was less than $50), easy to use, and has been very useful throughout my rebuild.

The next photo is of one of my typical cylinders after ultrasonic cleaning. There is no visible scoring, and my untrained eye thinks it looks pretty good for 80K miles. The next photo shows a typical cylinder after application of the dye penetrant test. I did not see any cracks. One cylinder, however, did show an anomaly (next photo). This photo shows two dots near the bottom of this cylinder. I was not very concerned about this because it clearly was not a crack and the anomaly was near the bottom of the cylinder, but I was curious. After cleaning the cylinder, I used the microscope to examine the area. I found nothing with the microscope, so I figured it was just a contamination of the process. The next photo shows what I see when I examine the cylinder wall with the microscope. I would think that if there were a significant crack in the cylinder wall, it would be visible with this magnification.

I also examined the heads, as shown in the next photo. I detected no cracks. I have read that these heads can experience micro-cracks. I do not, however, know if these tests can detect those cracks.

So, this is, for what it’s worth, a laypersons attempt to detect cracking in their Porsche engine.

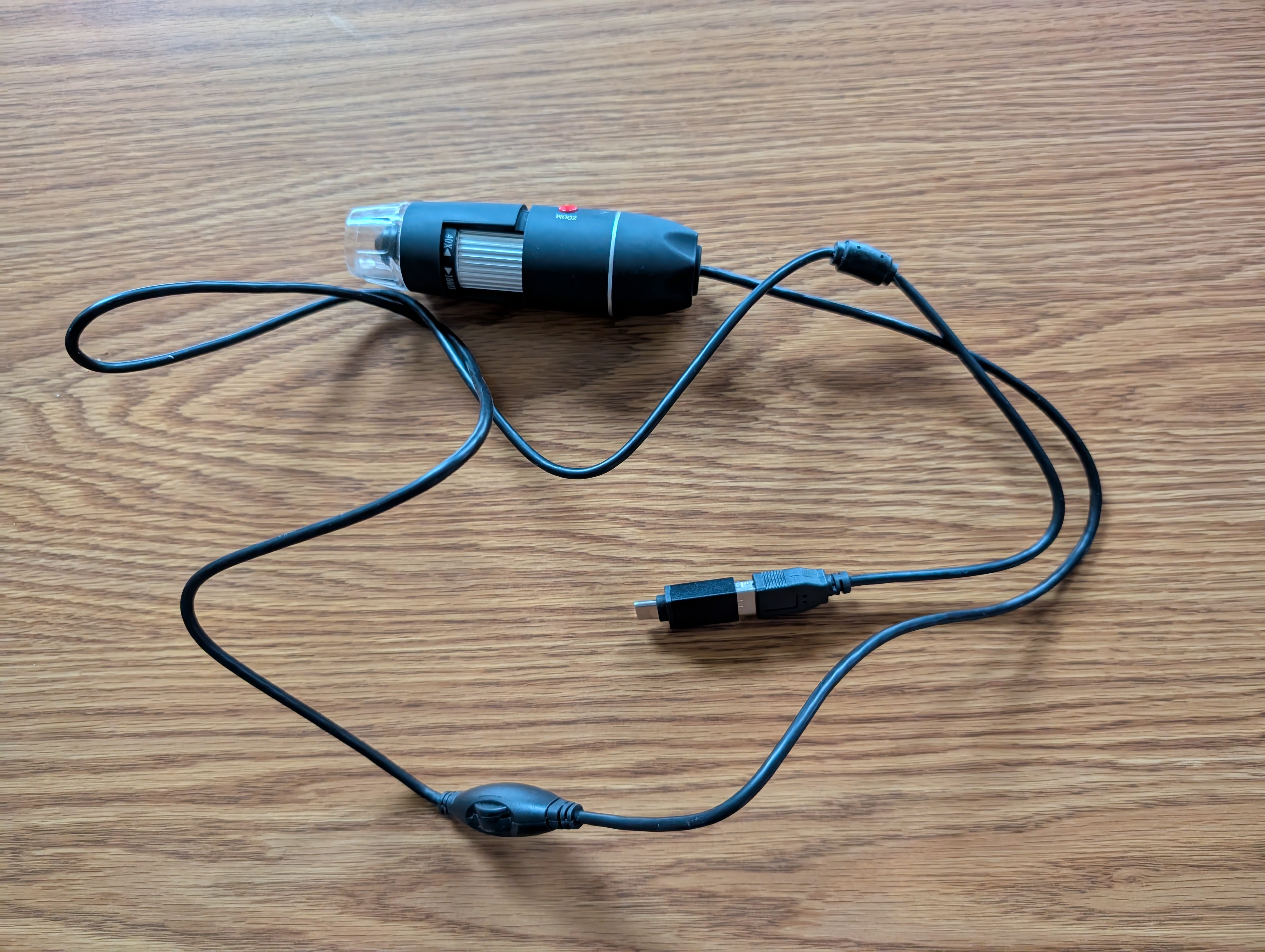

Handheld digital microscope

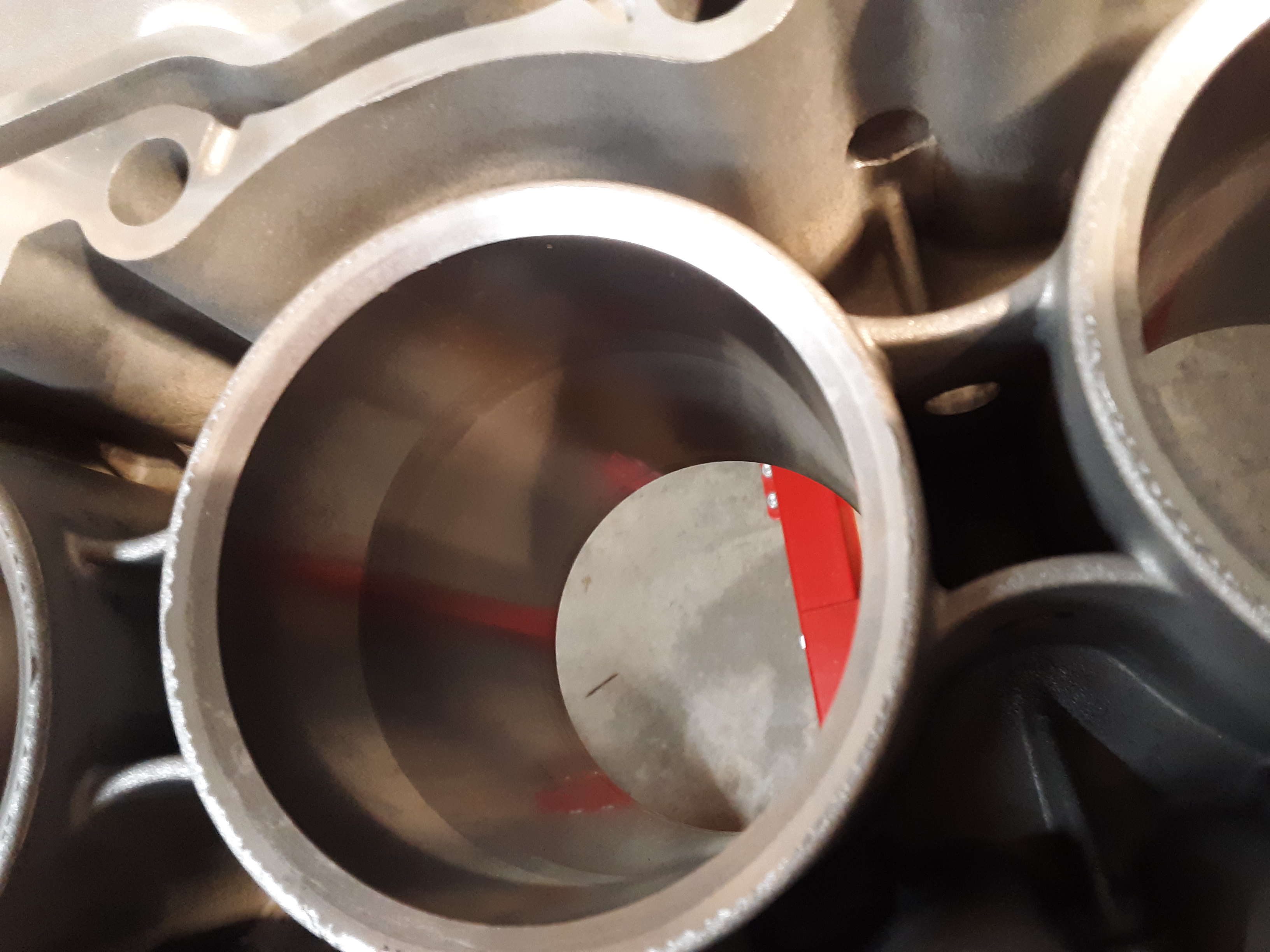

Typical cylinder after cleaning

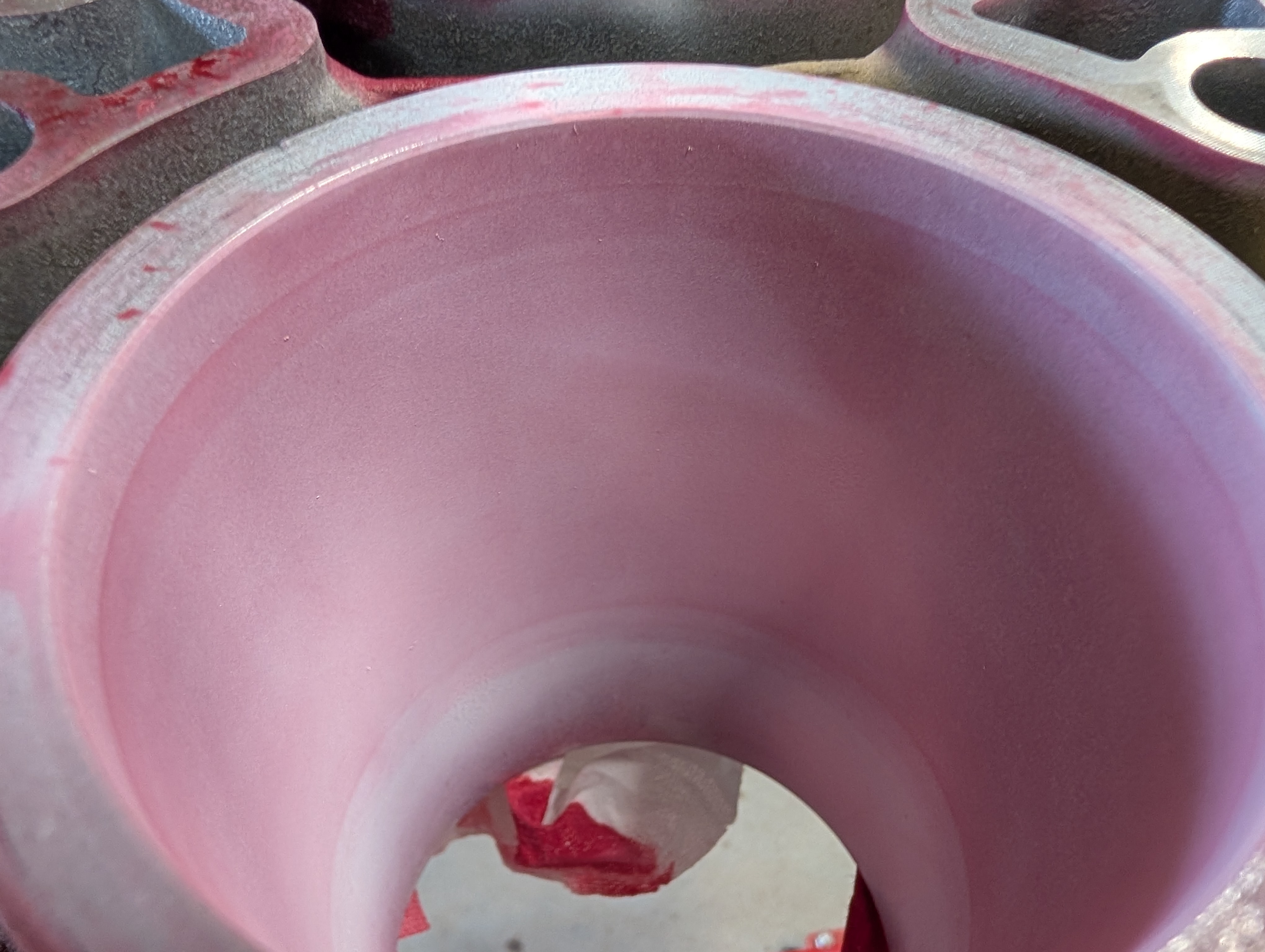

Typical cylinder after dye penetrant test

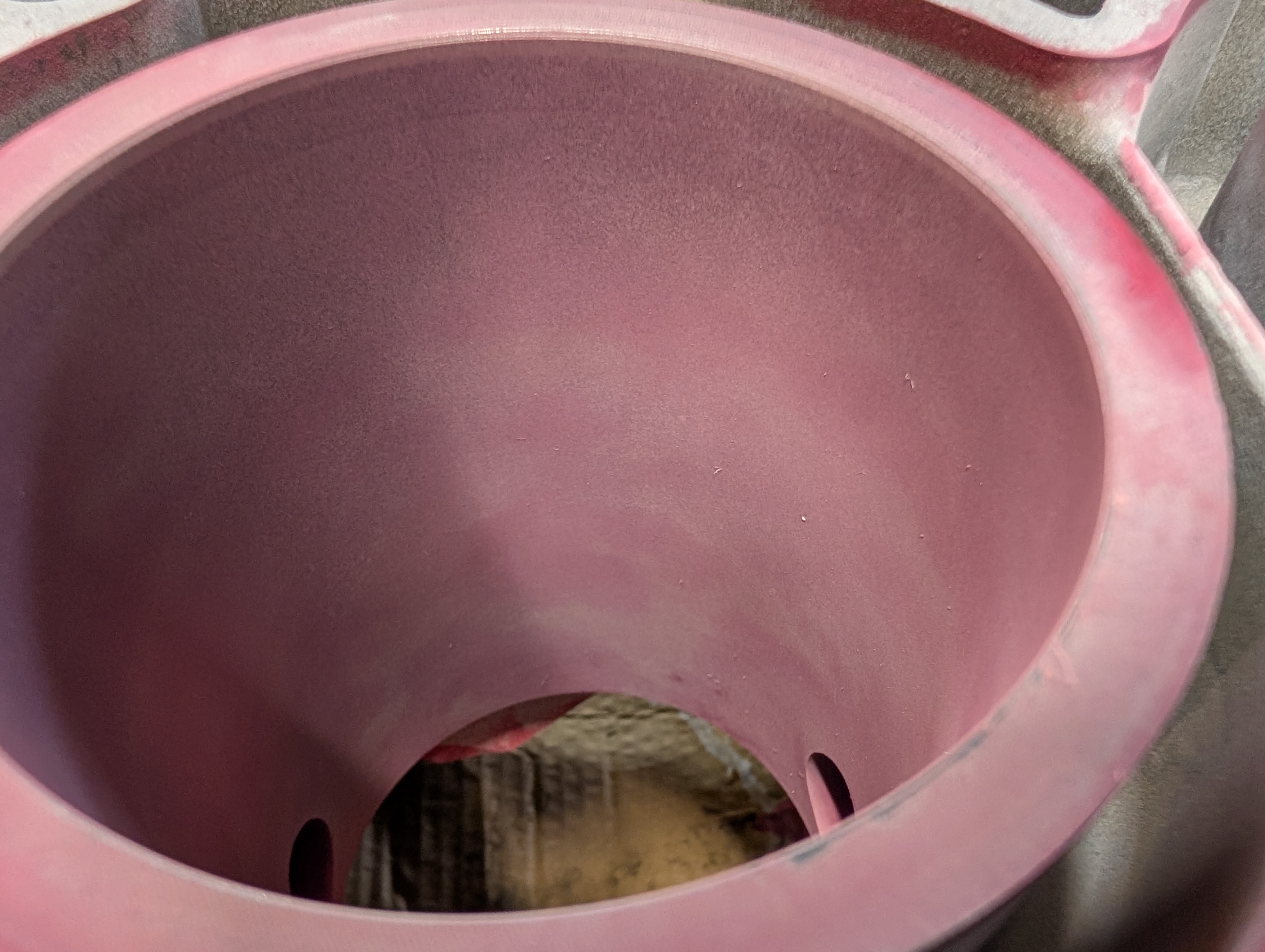

Cylinder with dots showing near the bottom

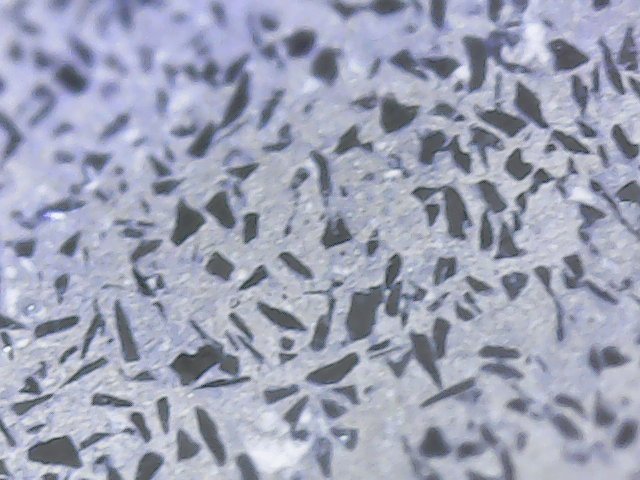

Cylinder surface at approx 800x magnification

Wed Jul 16 16-58-13.jpg (65.69 KiB) Viewed 1097 times

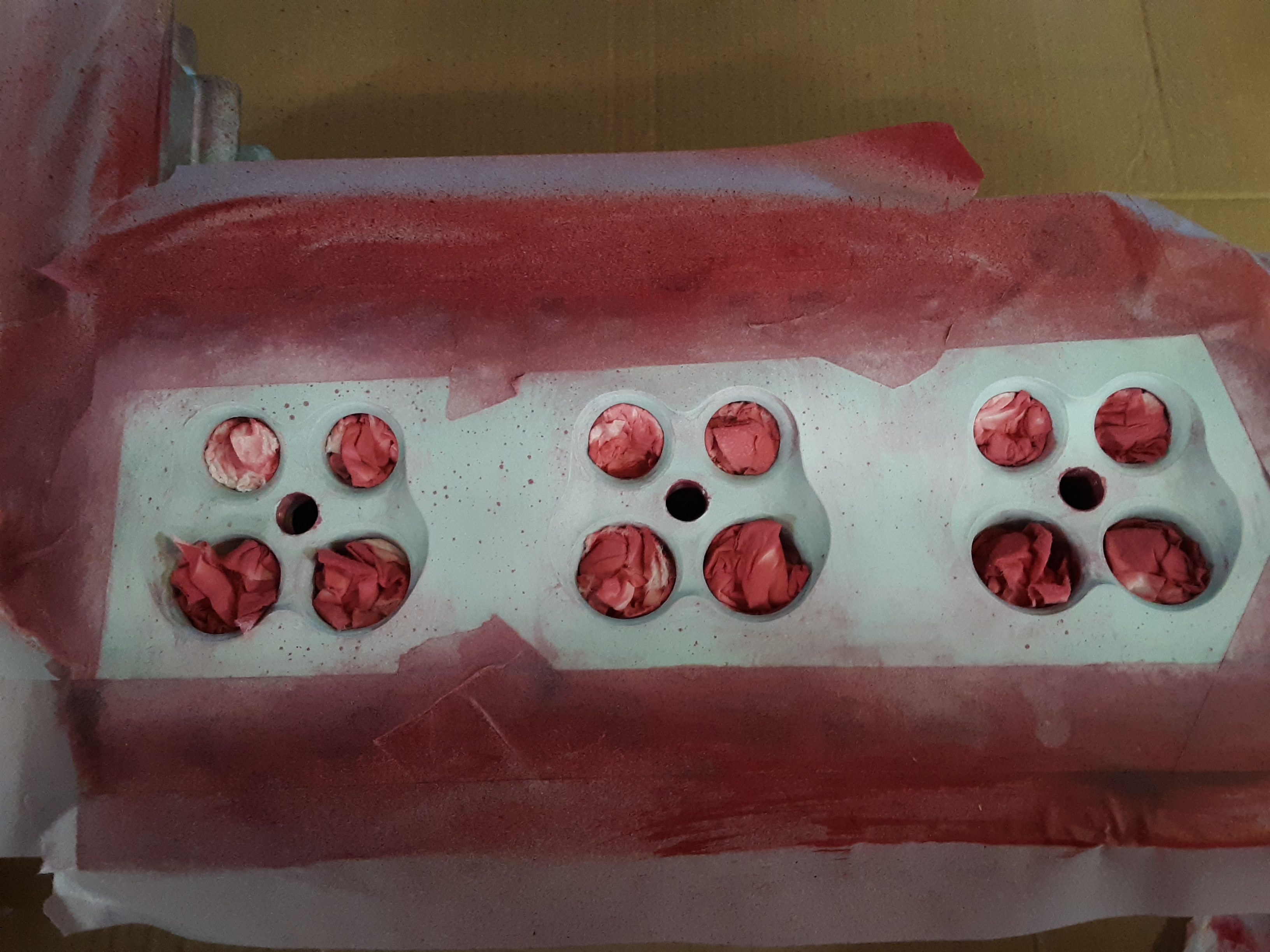

Dye penetrant test of head


[blueline]

Way beyond my limited knowledge (and abilities) but pretty cool-looking stuff.

I am sure others will have more pertinent feedback regarding not only the processes you are using, but also the what has been revealed so far.

Good luck with your project!
