Just wondering What are those 3 large dowel pins on the "BACK" (NOT between the block & the bell housing) of an early 944 clutch housing or bell housing facing the torque tube ??
Thanks in advance,
E. Fariab
What are those 3 large dowel pins on the BACK of 944 clutch housing for
-
Tom
- Site Admin
- Posts: 8912
- Joined: Fri Jun 25, 2021 2:04 pm
- Location: Silicon Valley, CA
- Has thanked: 931 times
- Been thanked: 3988 times
- Contact:
My knee-jerk reaction was that they were alignment pins for the torque tube, but they don't seem to do that... So now this question is going to bug me until we have a good answer...
-
eurojapan
- Posts: 14
- Joined: Mon Mar 20, 2023 10:59 pm
- Location: S.F./Bay Area
- Has thanked: 18 times
- Been thanked: 6 times
Hi Tom
Thanks for your immediate response, anyway !
Back in march of 2015 my shop mechanic took the engine out of my '85 944 and this car sat for over 8 years with the engine and the parts stored as best as we could with the hope of someday we get to rebuilding the bottom end .
Well, we closed the shop last year and I'm retired now . So, the just beginning of this moth, I finally decided to finish the engine by myself which has been a challenge plus not being able to find a few of the external parts around the engine that could have been misplace during our move .
I have completed the engine with the new clutch and bell housing all buttoned up and ready to go back in the car !
I have a bit of timing issue here, a family friend is coming tomorrow to help me to put the engine back in the car and it just downed on me what are those mysterious 3 pins on the "BACK" of the clutch housing that actually going in to the hollow torque tube where the clutch shat sticking out and goes through through the back of the housing ??
Could there be another missing part that attaches to the very back of the bell/clutch housing that I'm not aware of ???
Cheers for now,
Essy Fariab
Thanks for your immediate response, anyway !
Back in march of 2015 my shop mechanic took the engine out of my '85 944 and this car sat for over 8 years with the engine and the parts stored as best as we could with the hope of someday we get to rebuilding the bottom end .
Well, we closed the shop last year and I'm retired now . So, the just beginning of this moth, I finally decided to finish the engine by myself which has been a challenge plus not being able to find a few of the external parts around the engine that could have been misplace during our move .
I have completed the engine with the new clutch and bell housing all buttoned up and ready to go back in the car !
I have a bit of timing issue here, a family friend is coming tomorrow to help me to put the engine back in the car and it just downed on me what are those mysterious 3 pins on the "BACK" of the clutch housing that actually going in to the hollow torque tube where the clutch shat sticking out and goes through through the back of the housing ??
Could there be another missing part that attaches to the very back of the bell/clutch housing that I'm not aware of ???
Cheers for now,
Essy Fariab
-
eurojapan
- Posts: 14
- Joined: Mon Mar 20, 2023 10:59 pm
- Location: S.F./Bay Area
- Has thanked: 18 times
- Been thanked: 6 times

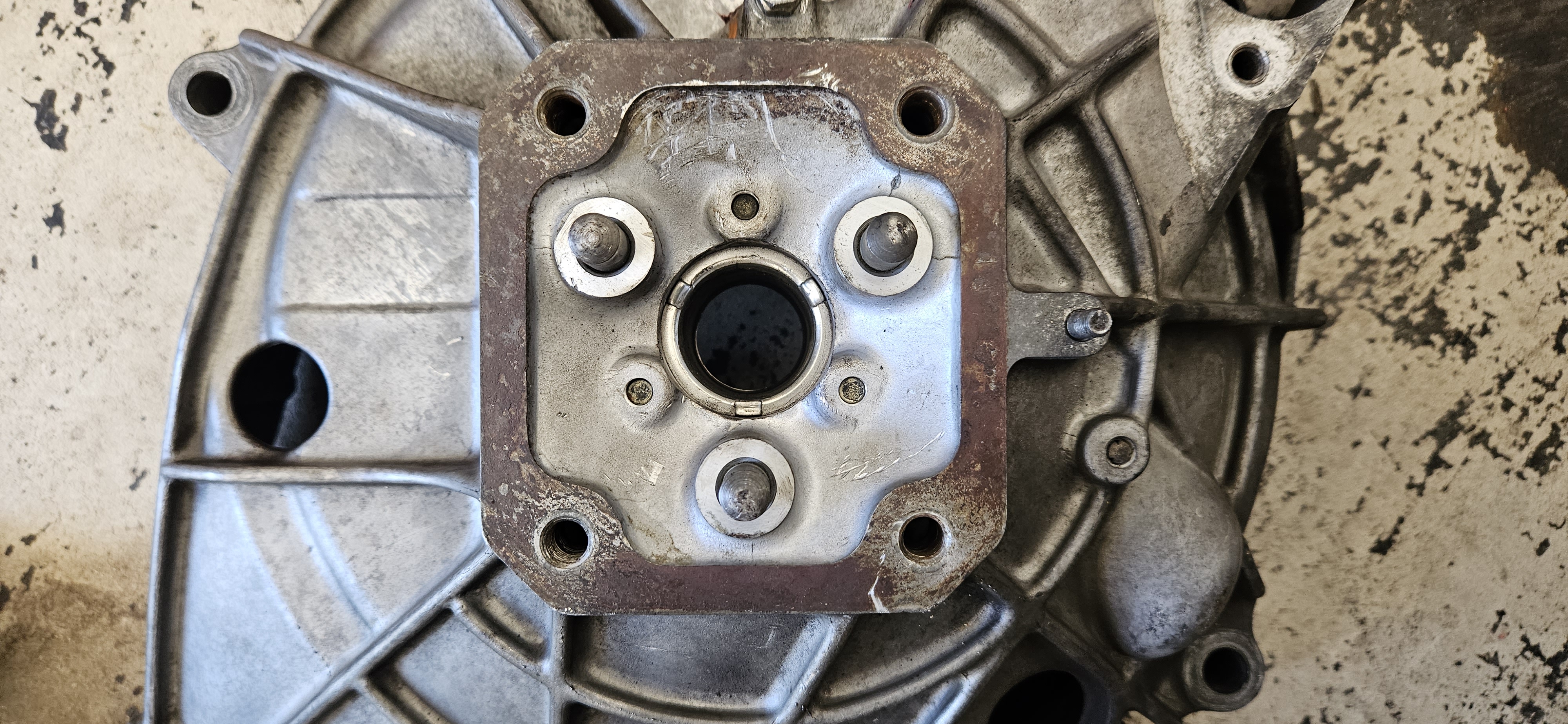

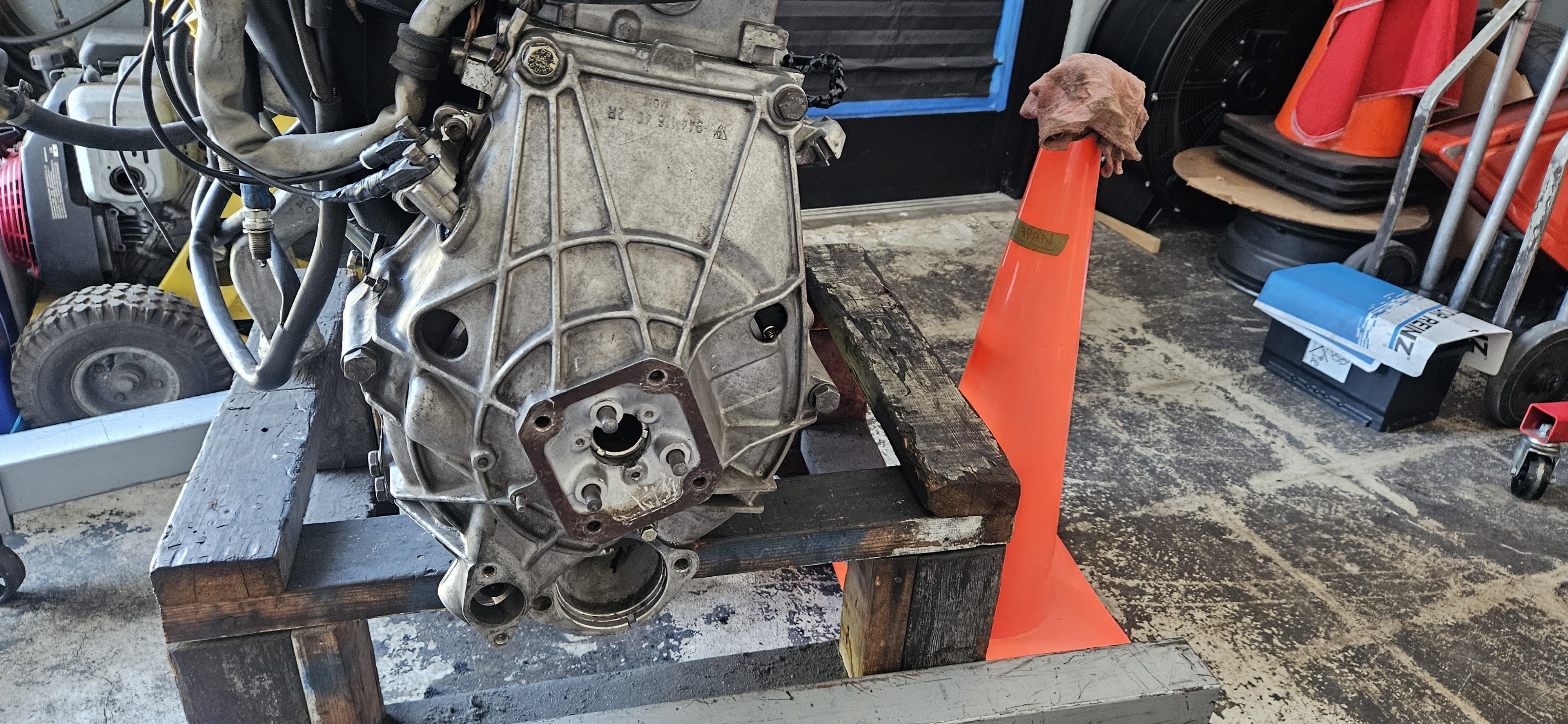

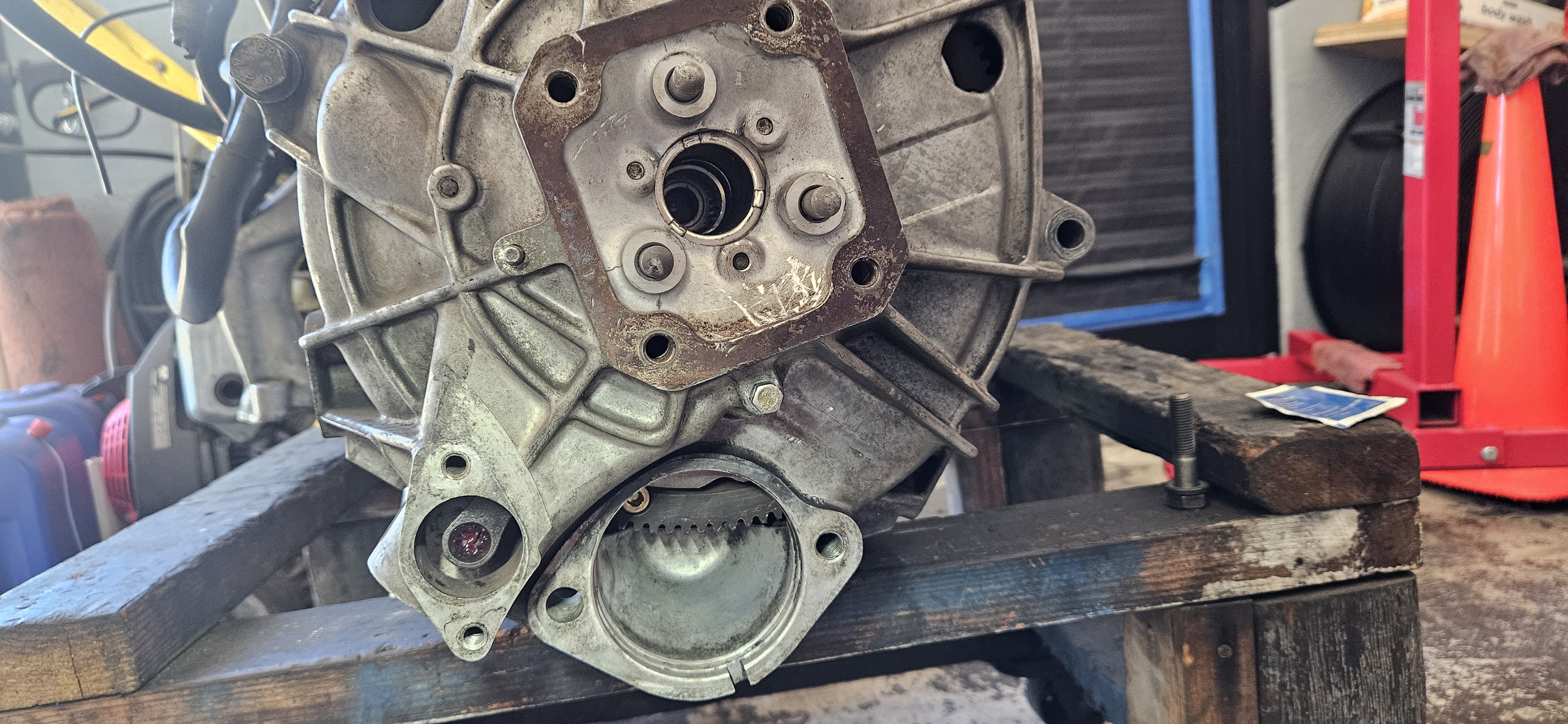

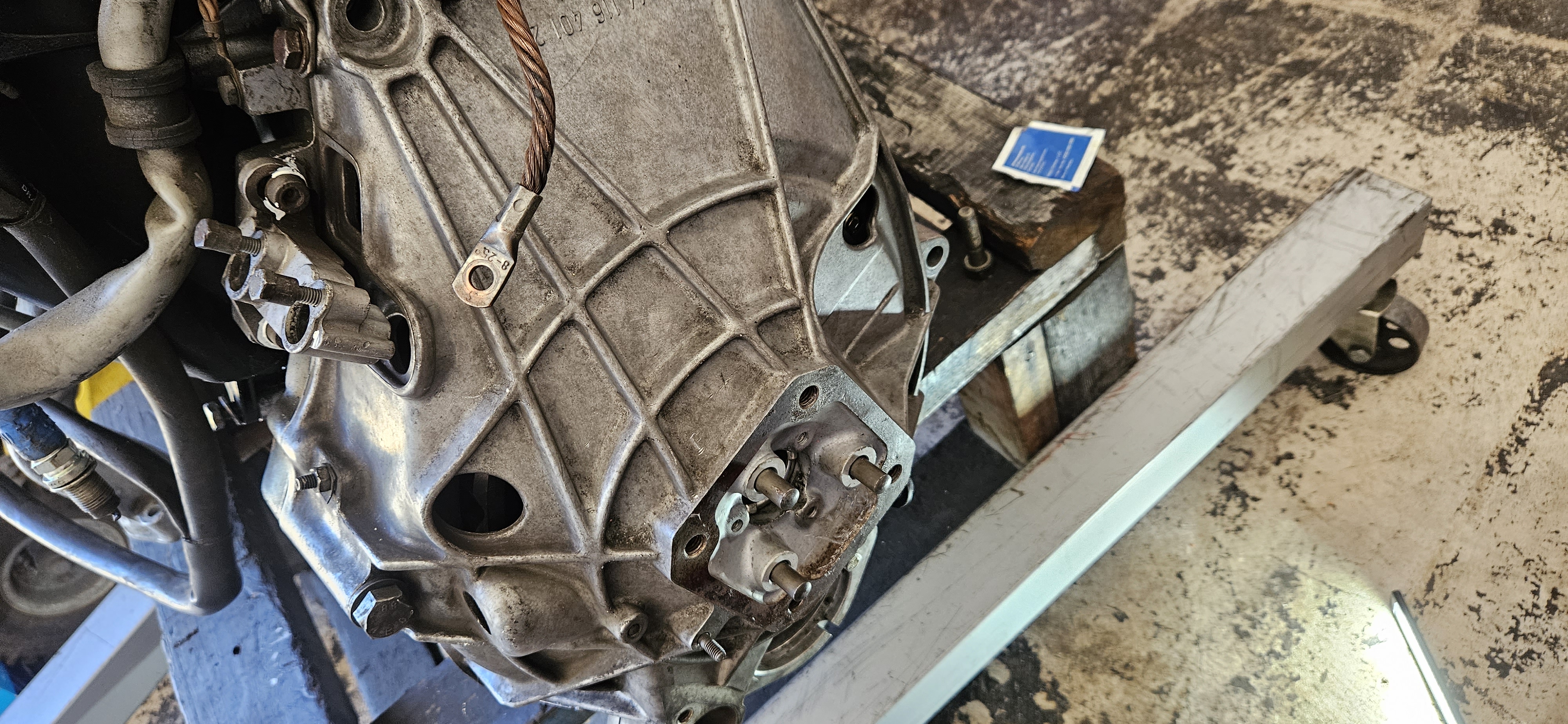

Ok, here are some related pictures for my question of "what are those large dowel pins on the back the clutch/bellhousing for ? that hopefully someone can shine some light on it !
