Ref sensor ID

Naturally aspirated tech and talk
Post Reply
seiplej
Posts: 57
Joined: Mon Jan 13, 2025 8:01 am
Has thanked: 5 times
Been thanked: 4 times

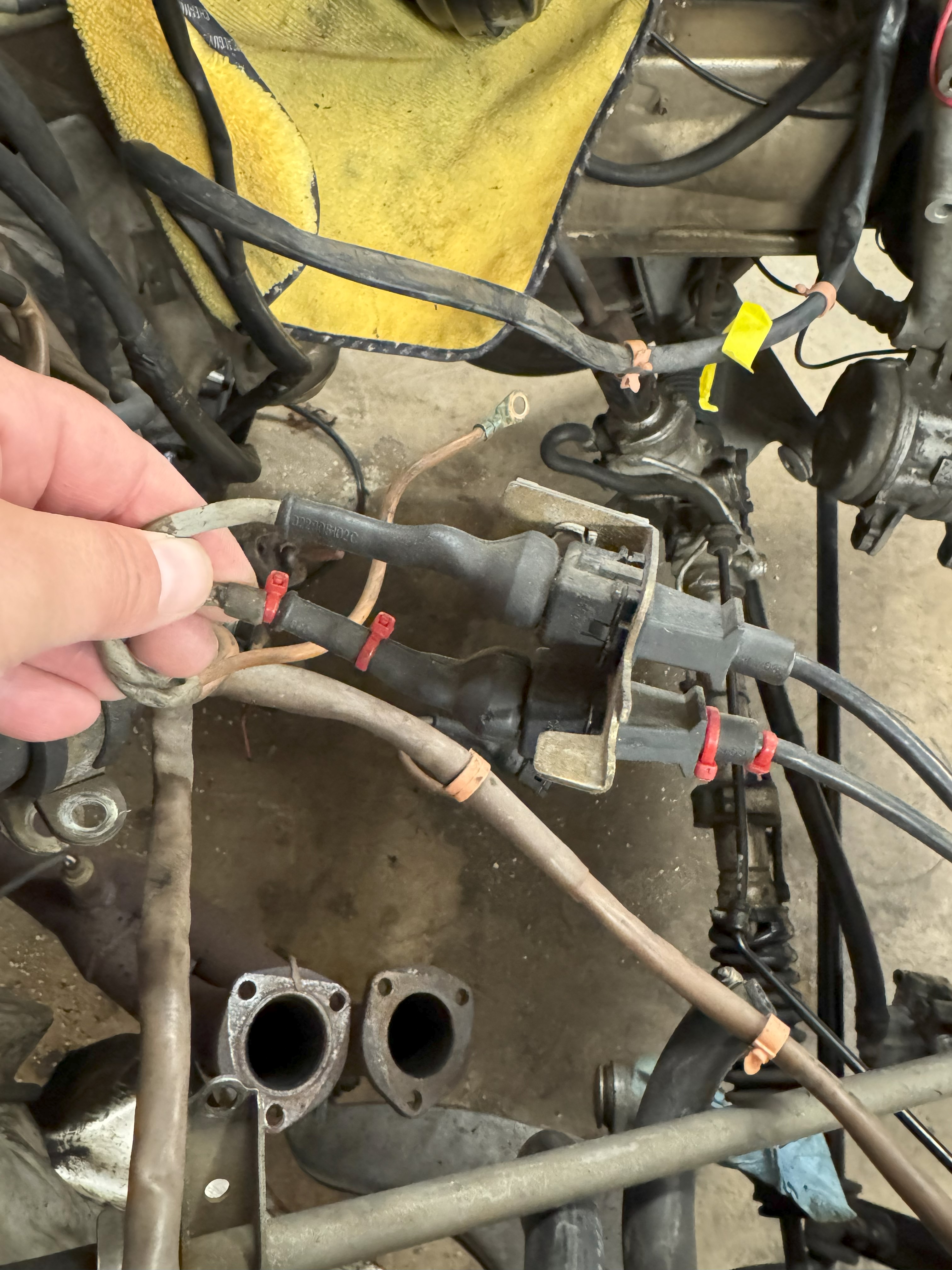

If you looked at this what one would you guess is the ref sensor and speed sensor?
Add Pictures/Files

#1

Top
User avatar
Tom
Site Admin
Posts: 8965
Joined: Fri Jun 25, 2021 2:04 pm
Location: Silicon Valley, CA
Has thanked: 941 times
Been thanked: 4028 times
Contact:
Contact Tom
Red for reference?? You can ohm out the connectors to the main DME 35-pin connector to know for sure. Speed is on 27 and Ref on 26.

#2

Top
gb951
Posts: 81
Joined: Mon Apr 03, 2023 10:09 am
Has thanked: 24 times
Been thanked: 37 times
If you look at the sensor when mounted, the one towards the rear of the engine is the speed sensor and the one towards the front of the engine is the TDC sensor.

Of course, if you have then reversed, the car will not start. Switch the connections and try again. (A prudent course after any job disturbing the sensors.)
