Have you ever taken anything apart and wished you had taken better notes or photos? I have.
This post is part of a continuing series of posts that detail the internal construction of various things. This is not intended to be step-by-step instructions for repair/removal/disassembly/etc. Rather, I hope this post (and future posts) can serve as a reference for people who would like visual clues in making their own repairs.

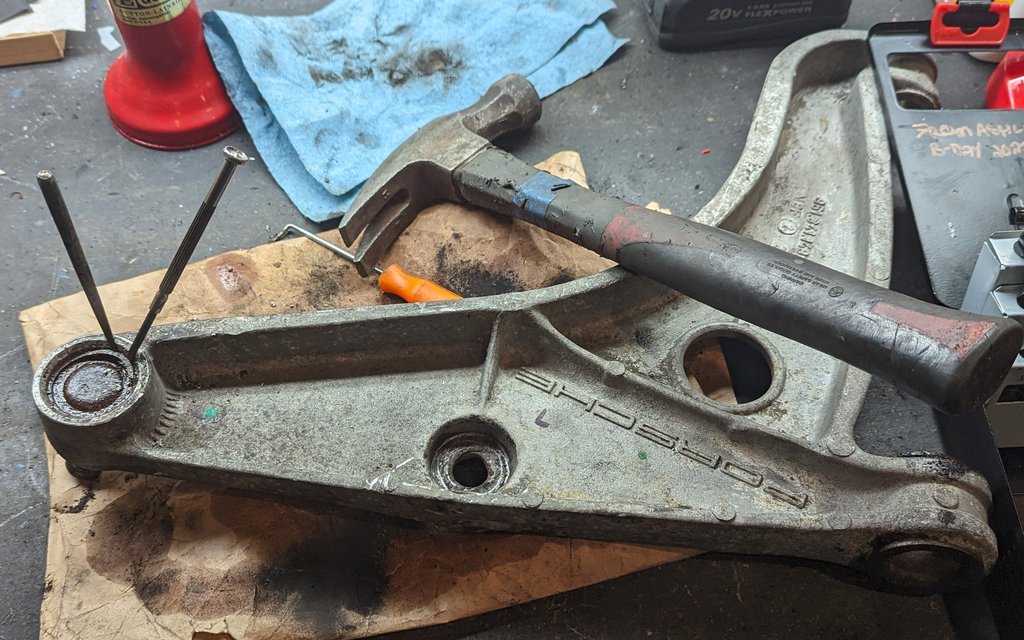

Late Offset Aluminum Control Arm
This is a not-previously-rebuilt late offset aluminum control arm with a casting date of "2 2 88".
- Late Offset Aluminum Control Arm
- PXL_20221103_200502413.jpg (177.1 KiB) Viewed 499 times

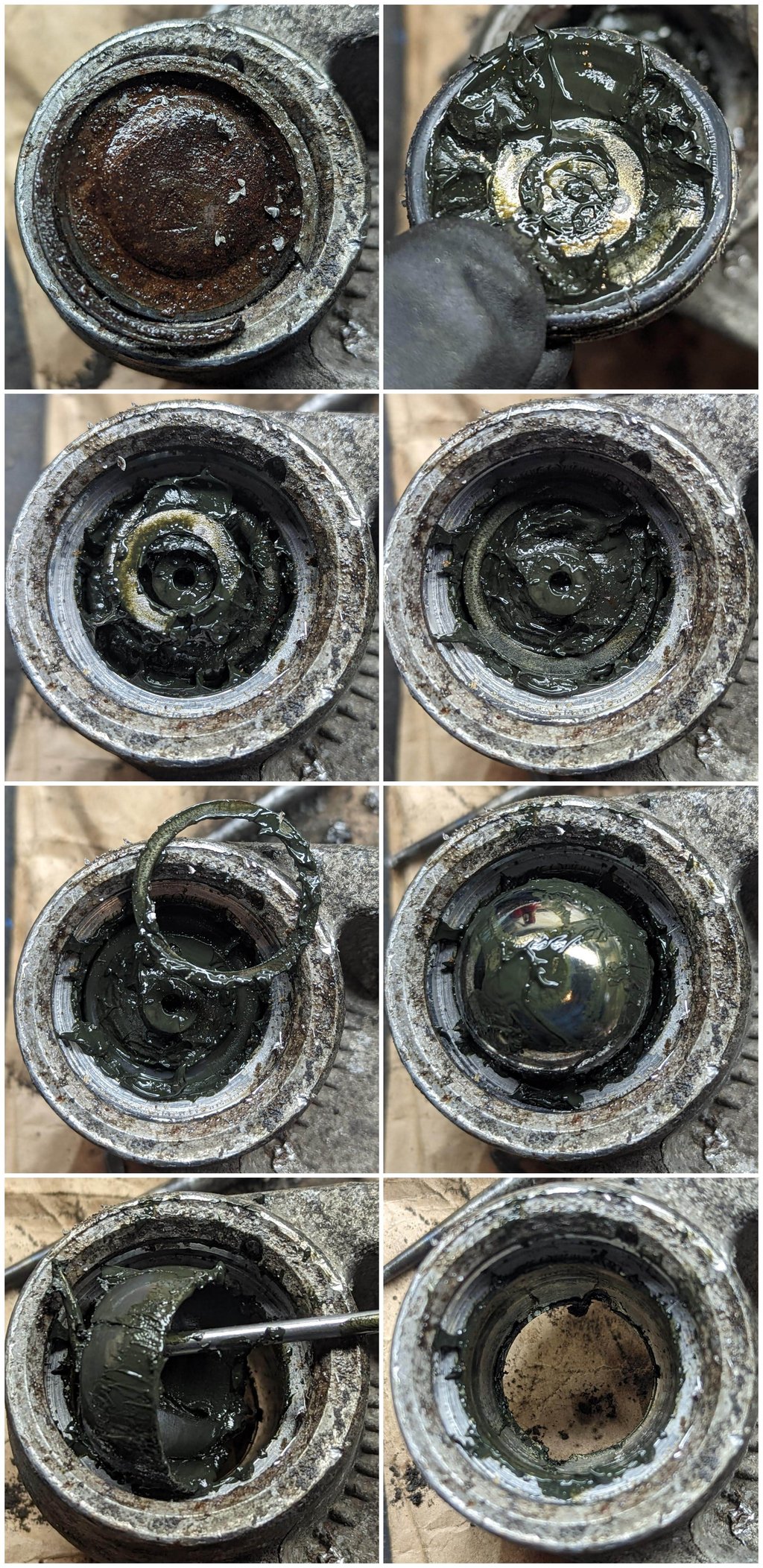

Disassembling Ball Joint
- Disassembling Ball Joint
- PSX_20221124_103240.jpg (693.85 KiB) Viewed 499 times

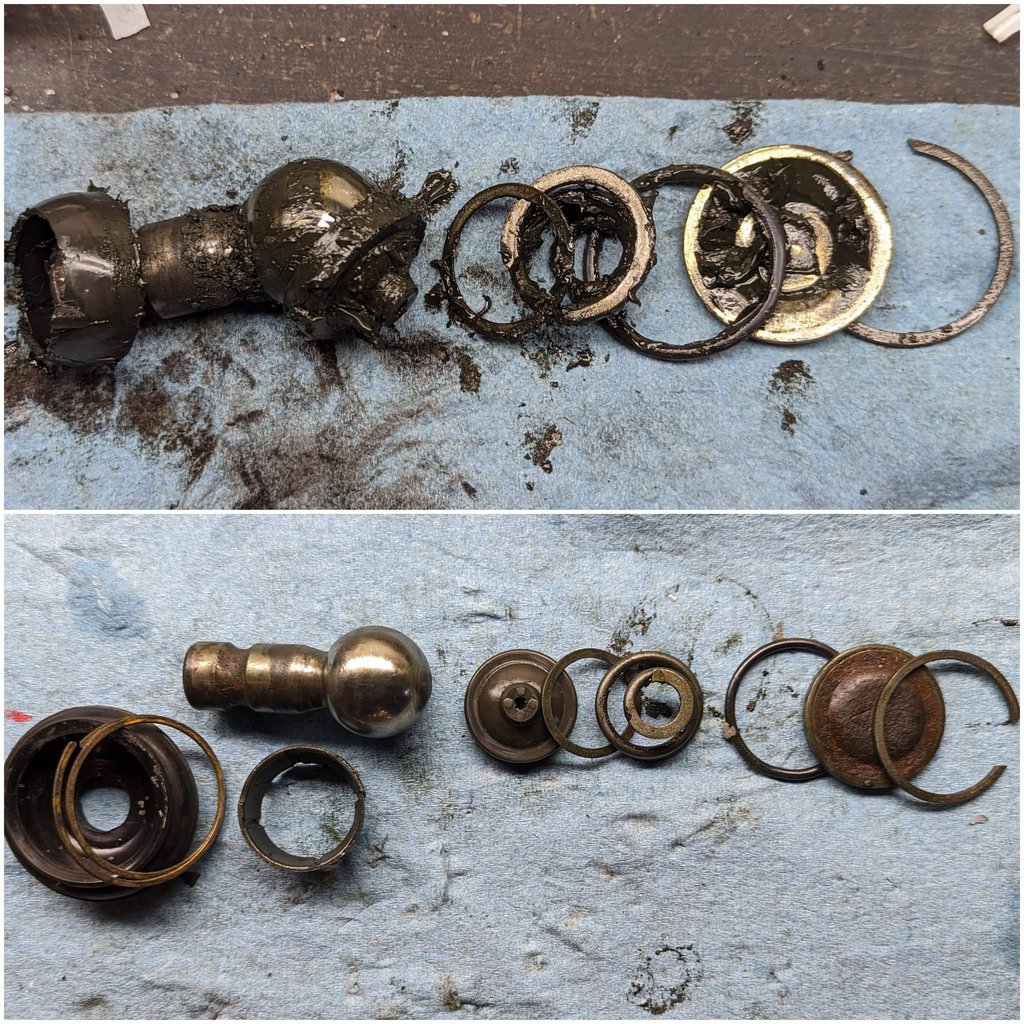

Ball Joint Exploded
- Ball Joint Exploded 01
- PSX_20221124_110141.jpg (343.99 KiB) Viewed 499 times

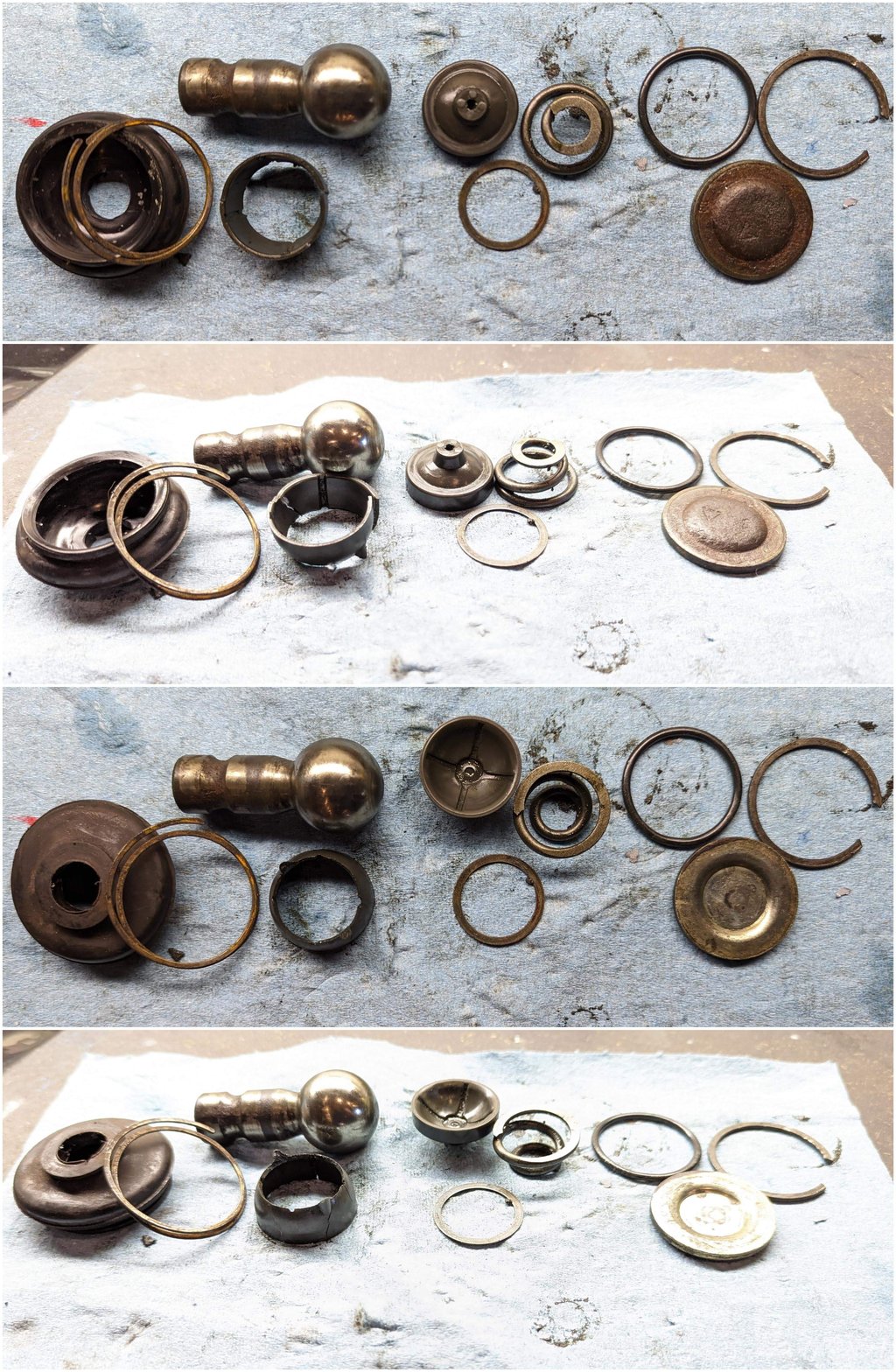

- Ball Joint Exploded 02
- PSX_20221124_110259.jpg (437.12 KiB) Viewed 499 times

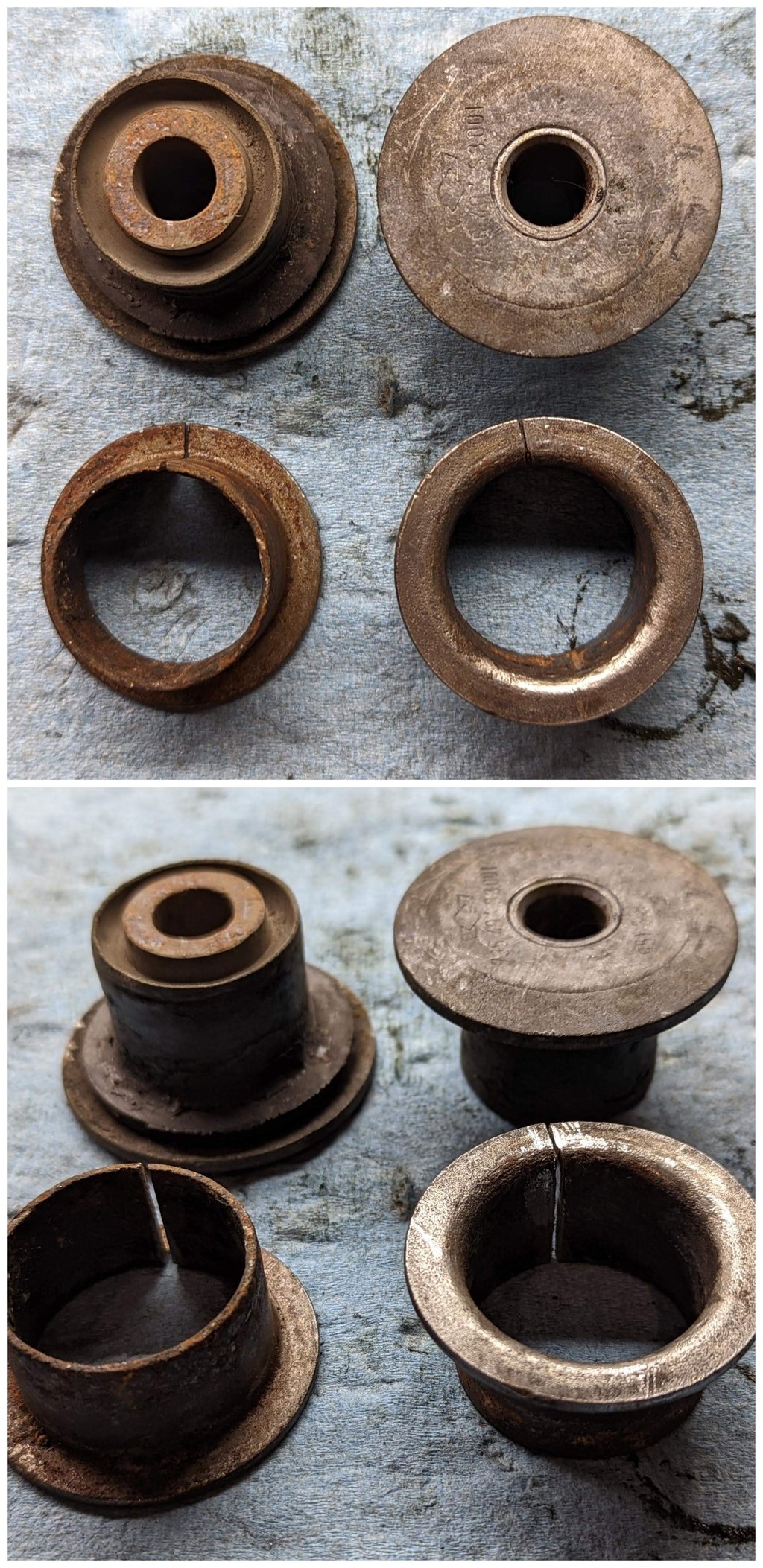

Cross Member Bushing
The slits you see in the steel sleeve are from disassembly.
- Cross Member Bushing
- PSX_20221124_105813.jpg (508.5 KiB) Viewed 499 times
