Windows work with ignition off

Posted: Tue Jun 23, 2026 6:04 am
by Richey
I’m doing the alarm on my car which includes a window module to roll the windows up when armed or when someone sticks their hand in the car.

As I took off the door card. I realized the window worked with the ignition off and keys on my toolbox.

I found some threads online saying this is a faulty relay keeping it powered but my thermal camera shows the relay isn’t drawing any power.

Before now I don’t think I ever tried the windows with the ignition off. Is this normal?

Re: Windows work with ignition off

Posted: Tue Jun 23, 2026 7:34 am
by Thom
It's normal, at least on ROW cars.

Re: Windows work with ignition off

Posted: Tue Jun 23, 2026 9:27 am
by jeyjey
Yeah, IIRC the windows work with the key on OR the door open. Allows you to roll up the window after getting out before you close the door.

Re: Windows work with ignition off

Posted: Tue Jun 23, 2026 9:28 am
by Tom
Interesting. I just checked and my windows don't go up or down without the key....

Re: Windows work with ignition off

Posted: Tue Jun 23, 2026 9:39 am
by soxnail
Key has to be in the ignition and on first click for the windows to work.
Exception: when you turn off the ignition but have not opened the door yet. (In my 1986 951)
Sox

Re: Windows work with ignition off

Posted: Tue Jun 23, 2026 1:57 pm
by Thom
Tom wrote: Tue Jun 23, 2026 9:28 am Interesting. I just checked and my windows don't go up or down without the key....
Mine didn't work for a long time until I fixed a poor contact in the door switch.

Re: Windows work with ignition off

Posted: Tue Jun 23, 2026 2:50 pm
by Tom
Thom wrote: Tue Jun 23, 2026 1:57 pm
Tom wrote: Tue Jun 23, 2026 9:28 am Interesting. I just checked and my windows don't go up or down without the key....
Mine didn't work for a long time until I fixed a poor contact in the door switch.
Wonder if it's a ROW thing? My door switch seems to work fine -- it triggers the dome light and gong relay....

Re: Windows work with ignition off

Posted: Tue Jun 23, 2026 3:30 pm
by PSU_Crash
Tom wrote: Tue Jun 23, 2026 9:28 am Interesting. I just checked and my windows don't go up or down without the key....
Same behavior on my 86. Even with a questionable door switch. Sometimes there's a ding and a light. Usually not. It's on the list

Re: Windows work with ignition off

Posted: Tue Jun 23, 2026 3:51 pm
by Tom

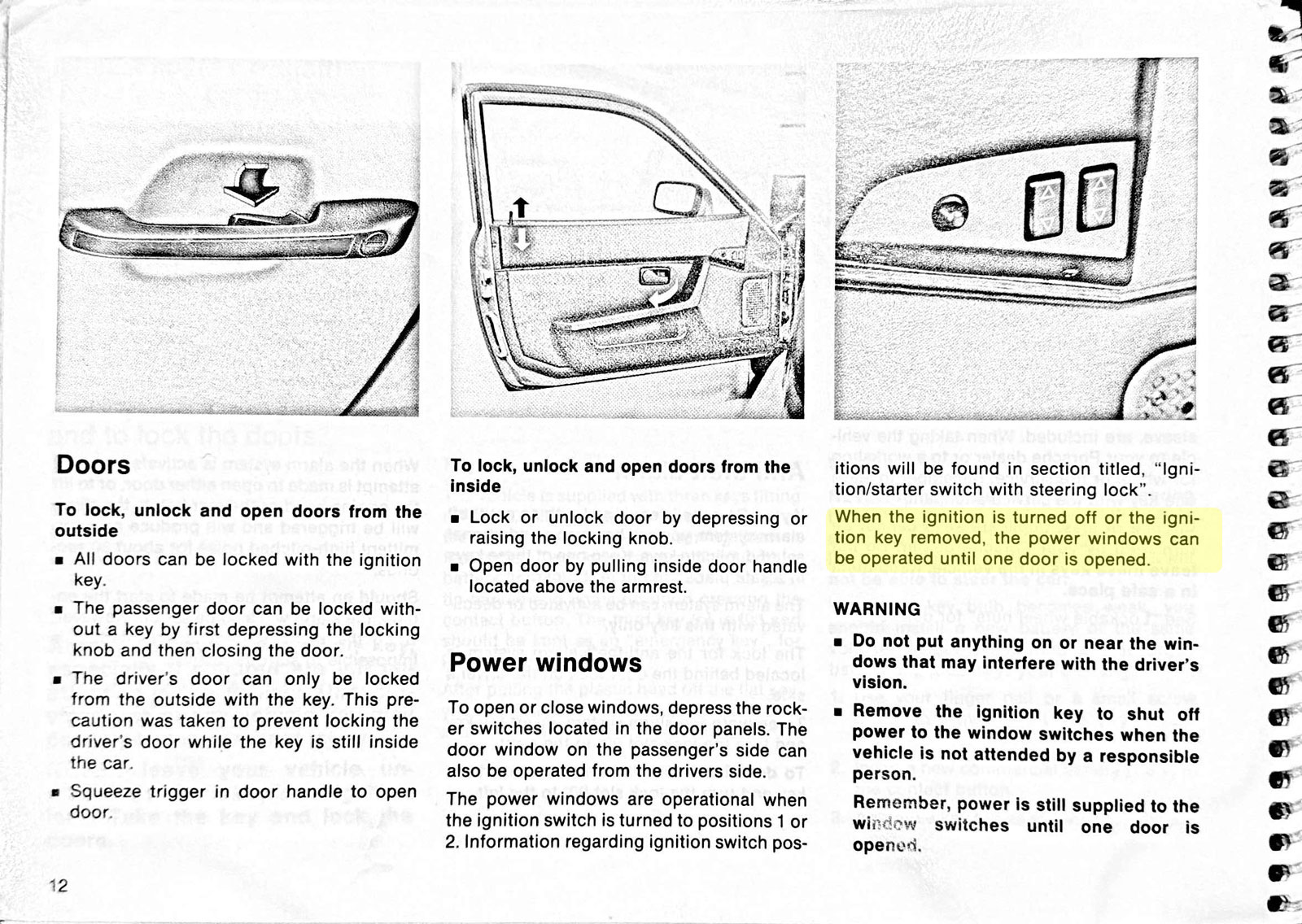

This thread made me paranoid so I went to an obscure, rarely-referenced source for the answer -- my old owner's manual. :shifty: It says exactly what @soxnail said. I understand from poking around that a stuck relay can also allow the windows to work without the key. But, perhaps more relevant here, I also found an NHTSA regulation that prohibits (in the US) the windows from working without the key (except after removing the key and before opening a door). Since the car works exactly as specified by that US law, I would not be at all surprised if it were a US-only 'feature.' If anyone has a Euro Owners Handbook, I'd love to see if this page is different....


https://www.nhtsa.gov/interpretations/2831o
