Testing ICV wiring on a turbo

Talk and Tech about turbocharged 924/944/968 cars
Post Reply
last lemming
Posts: 3
Joined: Wed Jul 05, 2023 12:05 pm
If I wanted to test the ICV wiring how do I test the outer pins? I know they are negative, but the ICV works by alternating them, so the wires simply can’t go to ground right? I mean they have to run to a switch that alternates the grounds.

I want to test the continuity of the wires from the ICV connector to wherever they connect - where is that?

#1

Top
User avatar
johnb
Posts: 320
Joined: Thu Jul 08, 2021 5:57 am
Has thanked: 110 times
Been thanked: 78 times
last lemming wrote: Sun Jun 14, 2026 1:18 am If I wanted to test the ICV wiring how do I test the outer pins? I know they are negative, but the ICV works by alternating them, so the wires simply can’t go to ground right? I mean they have to run to a switch that alternates the grounds.

I want to test the continuity of the wires from the ICV connector to wherever they connect - where is that?

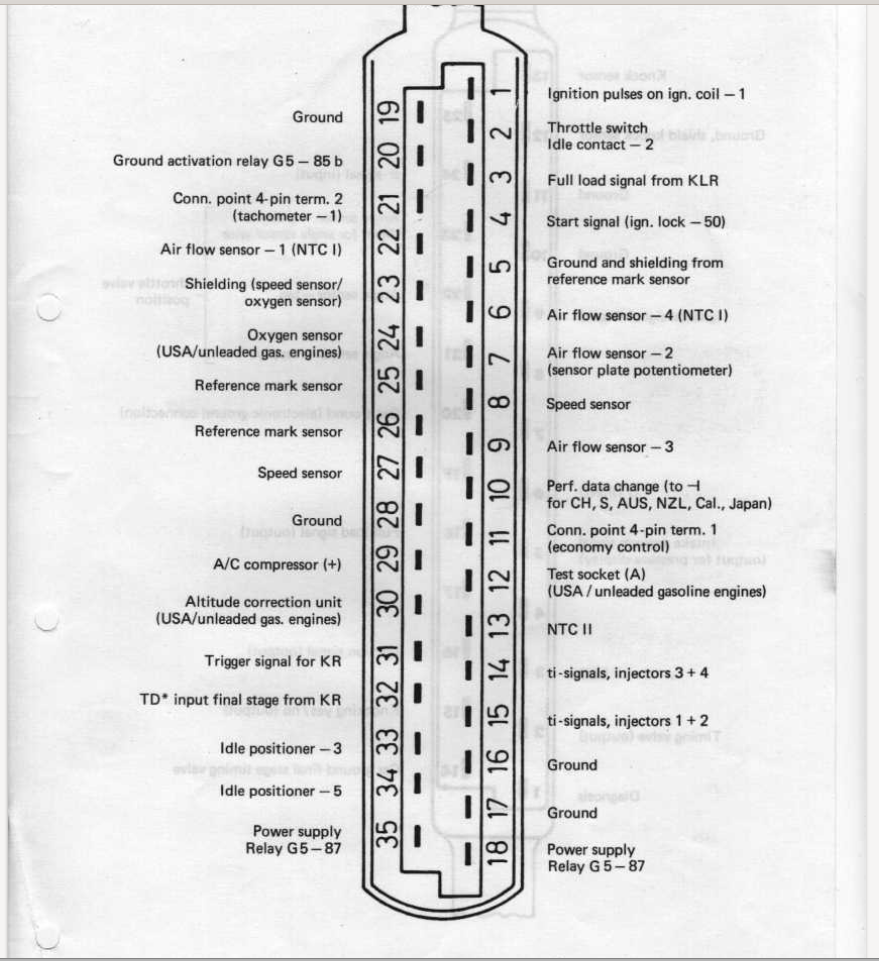

Pins 33 and 34 of the DME connector (see pic). This is from the DME Test Plan[1] which I can't attach here because it's too big.

[1] https://jhnbyrn.github.io/951-KLR-PAGES ... t_Plan.pdf
