wire routing—oil pressure and level
Posted: Tue Jun 09, 2026 11:21 pm
by O875
Trying to work out where to route the wires across the front of the engine to the oil pressure and level senders.
It looks as if they go over the top of the water pump then down in front of the inlet and back to the senders. Is that right please? The other way would be across the top of the water pump then behind the inlet but the wires feel as if they want to go in front.
I thought I took plenty of photos of how things looked but missed this one. Thank you.
Re: wire routing—oil pressure and level
Posted: Wed Jun 10, 2026 8:38 am
by Tom
O875 wrote: Tue Jun 09, 2026 11:21 pm
Trying to work out where to route the wires across the front of the engine to the oil pressure and level senders.
It looks as if they go over the top of the water pump then down in front of the inlet and back to the senders. Is that right please? The other way would be across the top of the water pump then behind the inlet but the wires feel as if they want to go in front.
I thought I took plenty of photos of how things looked but missed this one. Thank you.
This might help from when I installed my Kroon harness....
https://www.carpokes.com/viewtopic.php? ... =10#p40029
Re: wire routing—oil pressure and level
Posted: Thu Jun 11, 2026 12:10 am
by O875
Thanks Tom. From that picture it looks as if you took the wires behind the pump inlet?
Re: wire routing—oil pressure and level
Posted: Thu Jun 11, 2026 2:27 am
by jeyjey

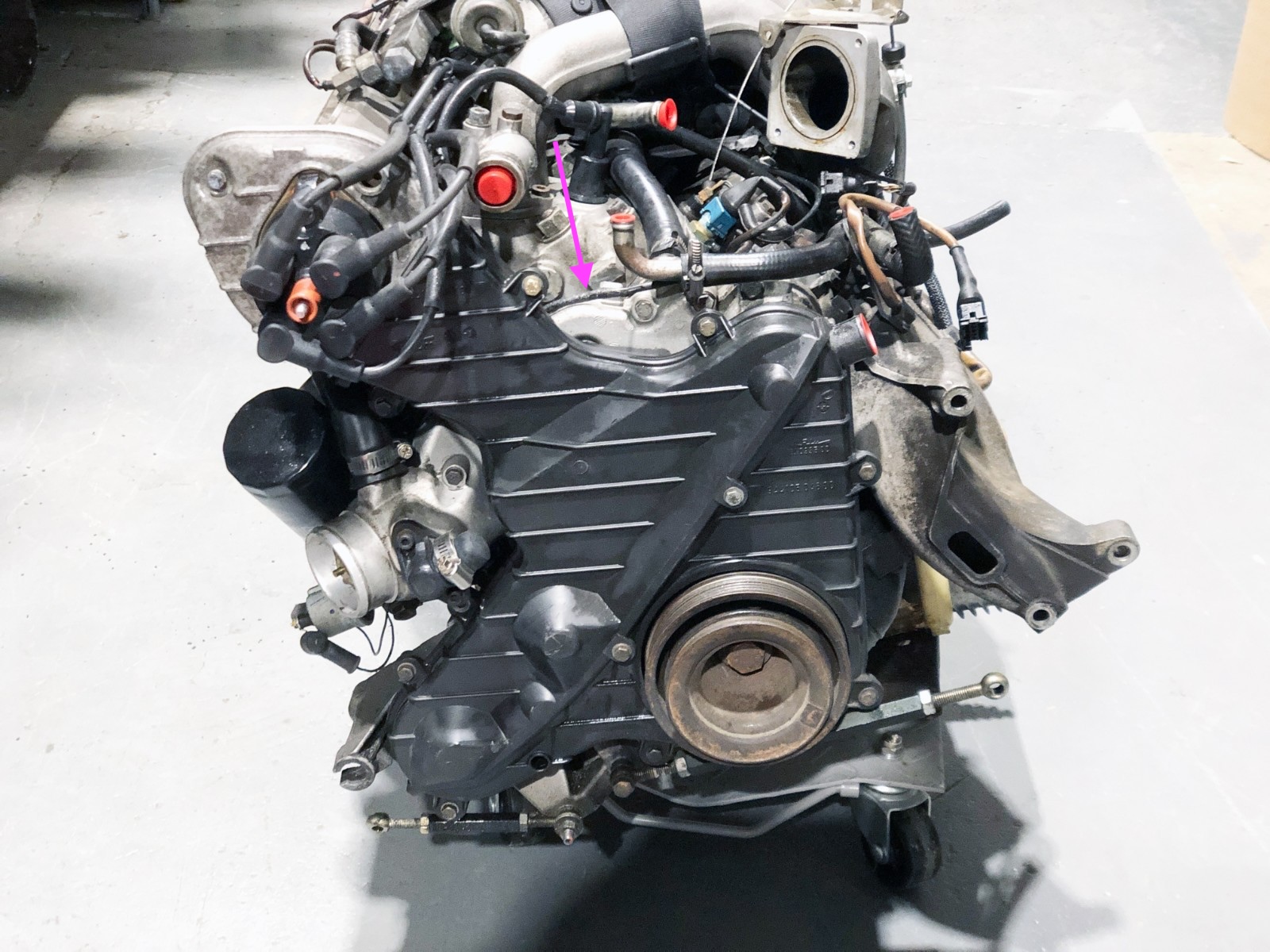

- 944nafront.jpg (509.82 KiB) Viewed 31 times
- engine_exhaust_side.jpg (592.5 KiB) Viewed 30 times
Re: wire routing—oil pressure and level
Posted: Thu Jun 11, 2026 3:10 am
by jeyjey

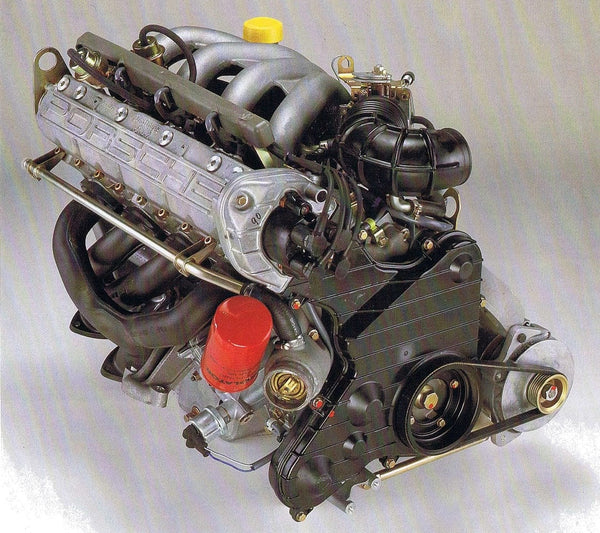

Though this picture has it going under the thermostat housing:
- another.jpg (98.66 KiB) Viewed 28 times
Re: wire routing—oil pressure and level
Posted: Thu Jun 11, 2026 3:15 am
by jeyjey
Another example with the wire behind the thermostat housing:
Re: wire routing—oil pressure and level
Posted: Thu Jun 11, 2026 3:29 am
by jeyjey
Balance of opinion appears to be behind the thermostat housing:
Re: wire routing—oil pressure and level
Posted: Thu Jun 11, 2026 11:03 pm
by O875
Thanks for finding all those images!
Behind it will be. It does make slightly more sense, as it will be more out in the air rather than pushed against the thermostat housing.
Last night I had a look at Jürgen's (irina25661) video of replacing the water pump on a 944 S2. Before the wire was in front and after the new pump was on it was behind.
