I’ve installed the left front abs repair harness and am trying to determine where to splice in.

Has anyone here done the left front before? Mine is an ‘03 C4S, but would expect all 996’s to be the same.

Tks-
Joseph

#1

Top
TN996C4S
Posts: 7
Joined: Wed Apr 19, 2023 4:21 pm
Been thanked: 5 times
Got it done. Left enough slack to support future replacement. Maybe a 5 channel plug would have been one step better.
Add Pictures/Files

#2

Top
TN996C4S
Posts: 7
Joined: Wed Apr 19, 2023 4:21 pm
Been thanked: 5 times
Those are in reverse order.

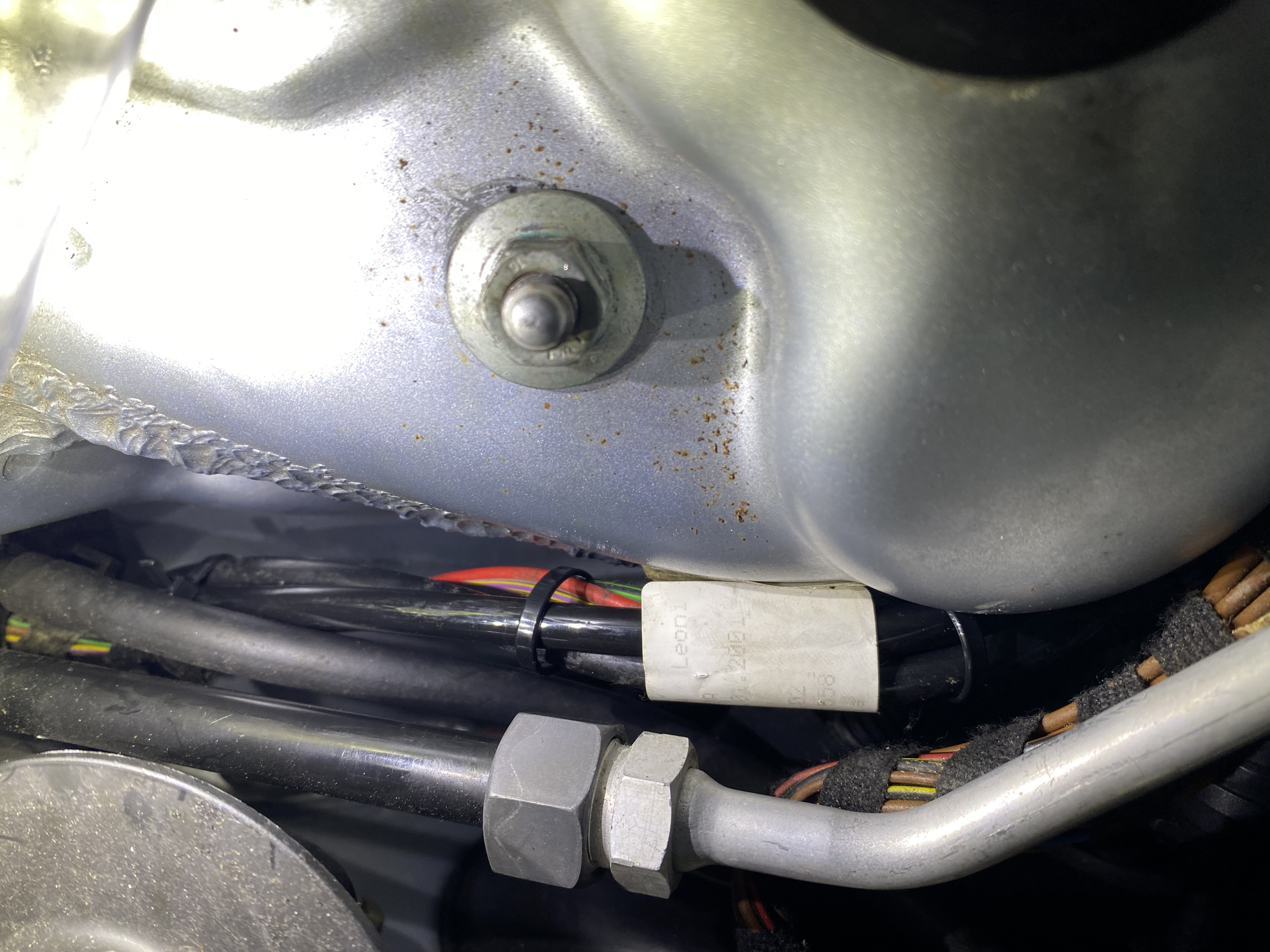

All buttoned up

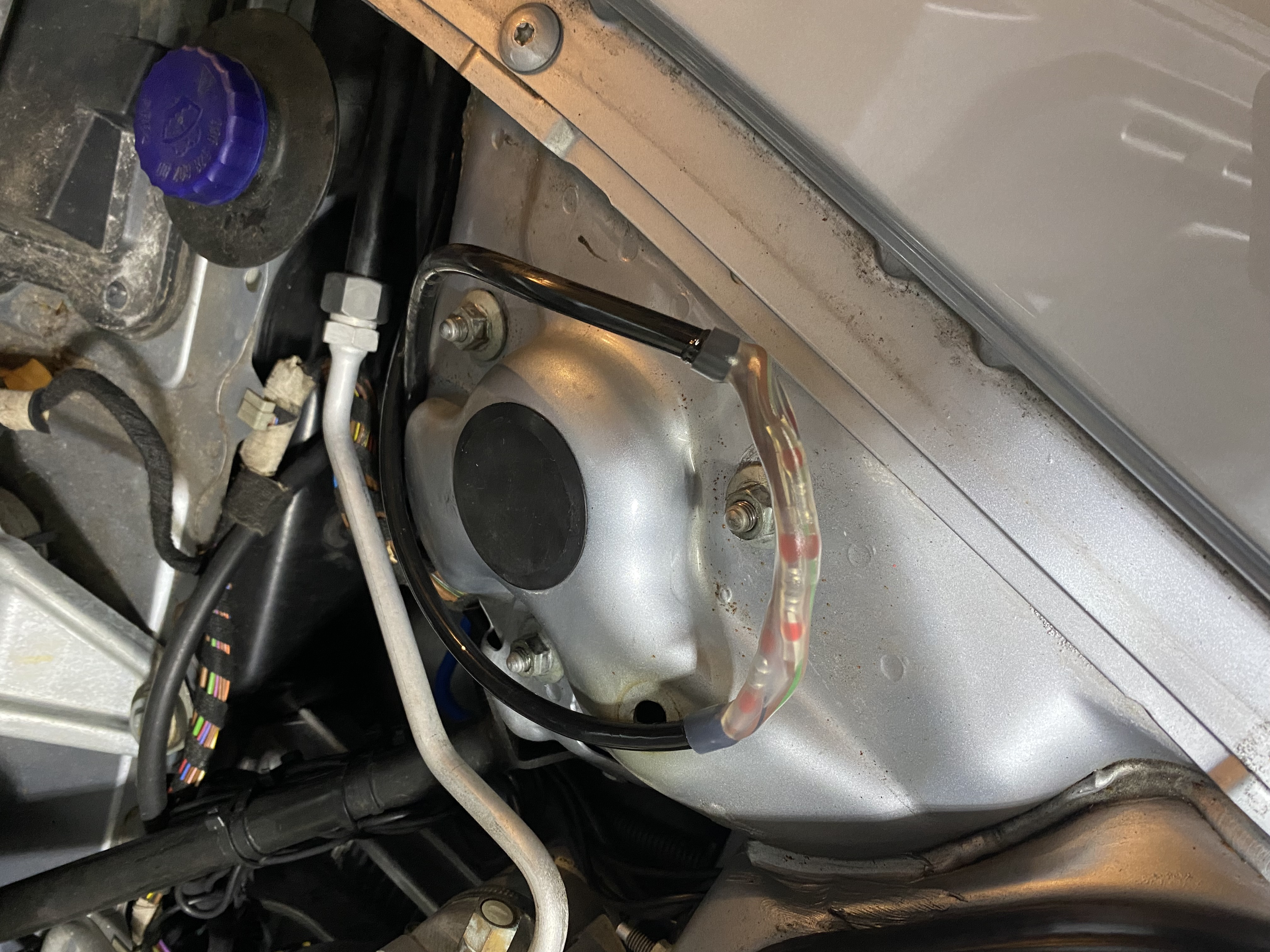

Loop fully shrinked
Shrinking

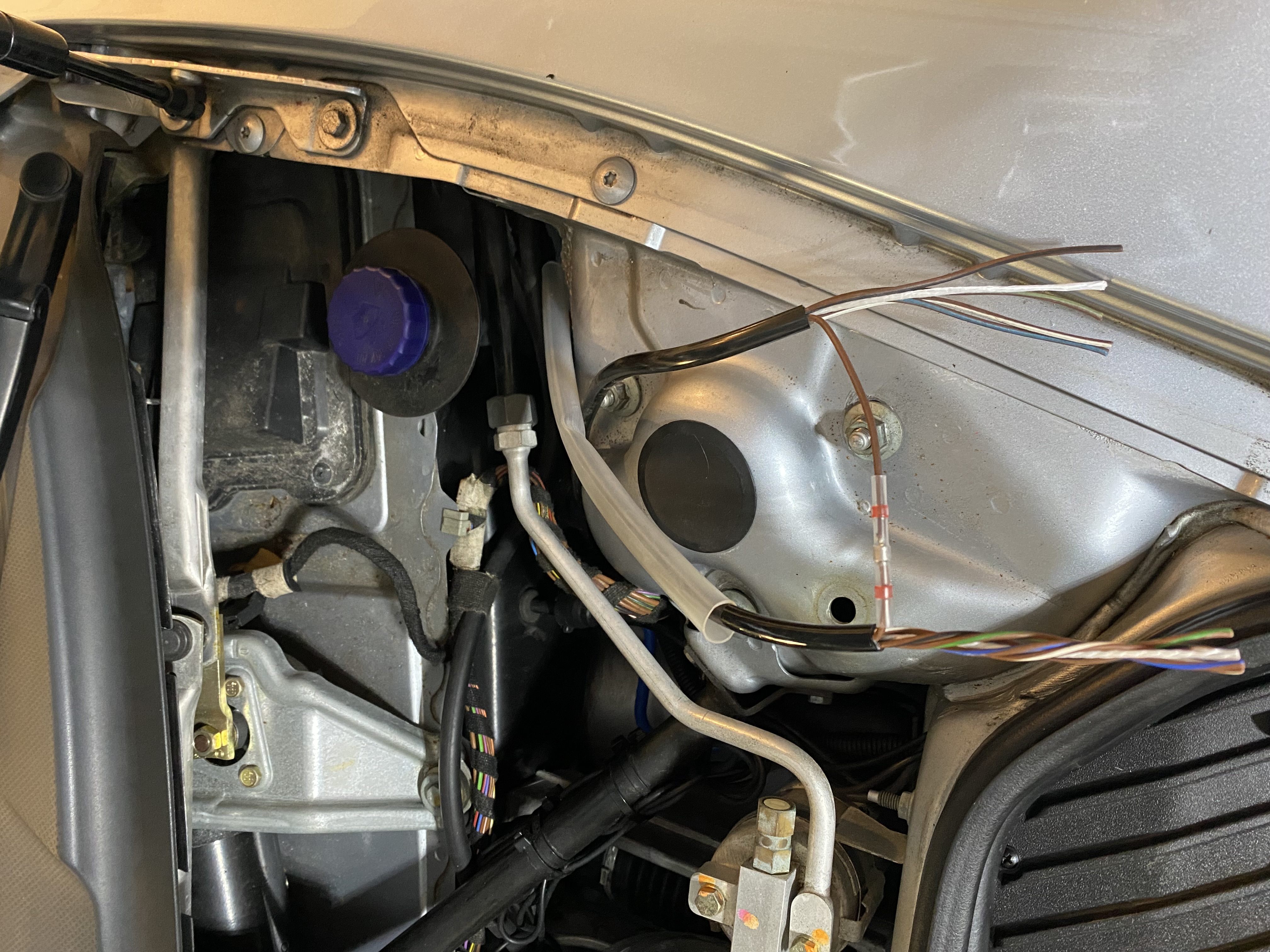

First shrink

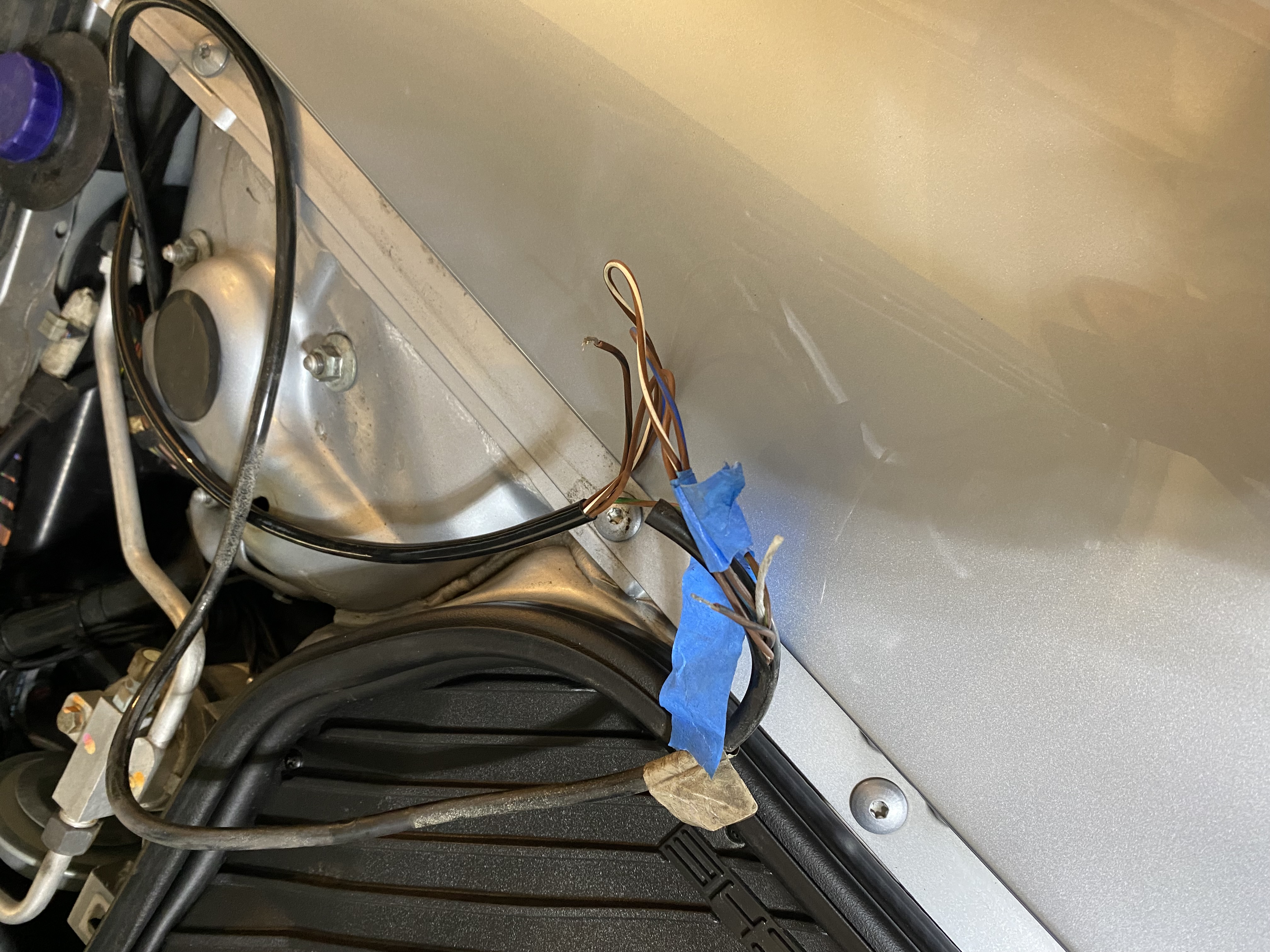

Test-fit to prove that the harness fixed the problem (it did)

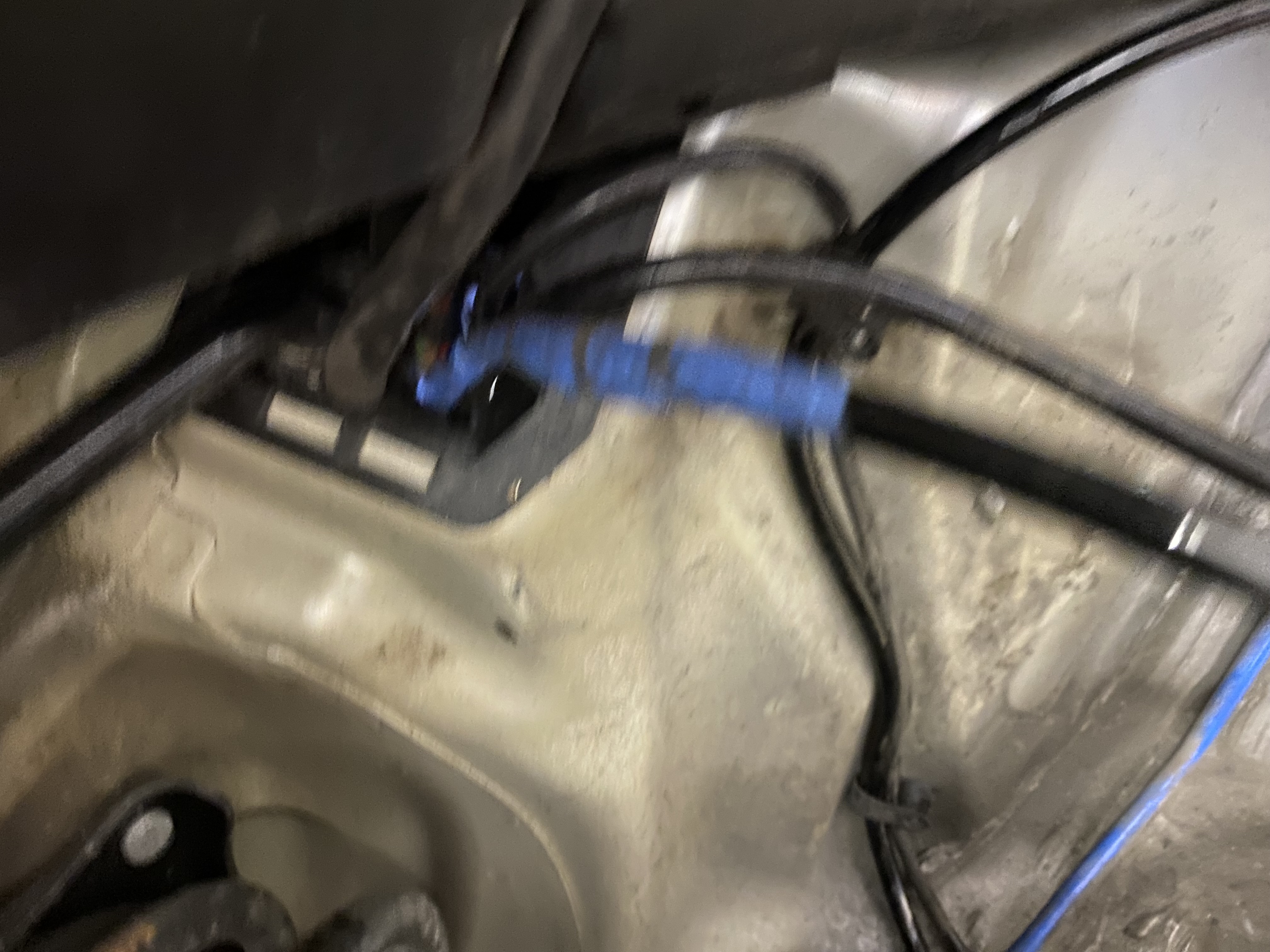

Stuffing the harness through the inner fender
Last two, replacing the harness.

#3

Top
User avatar
blueline
Moderator
Posts: 6103
Joined: Mon Sep 26, 2022 12:22 pm
Location: Middle Tennessee
Has thanked: 4451 times
Been thanked: 2417 times
Glad you got it done and that it fixed the problem. :thumbup:
Tim
Current:
'26 911 Carrera S - PTS Verde British Racing Green
'24 Cayenne S - Algarve Blue Metallic
'21 718 Cayman GTS - Black
'22 911 Turbo S - Carmine Red
'21 718 Cayman GT4 - White
'11 GMC 1500 Quad Cab 4x4 - Black
Musik-Stadt Region

#4

Top
User avatar
J-Dub
Posts: 663
Joined: Mon Mar 20, 2023 1:24 pm
Location: Phoenix, AZ
Has thanked: 654 times
Been thanked: 567 times
Nice work, glad you were able to fix it. I may have missed it previously but what led to this harness needing to be replaced?
1957 VW Beetle
2004 VW R32
2021 Porsche Cayman GTS 4.0

#5

Top
TN996C4S
Posts: 7
Joined: Wed Apr 19, 2023 4:21 pm
Been thanked: 5 times

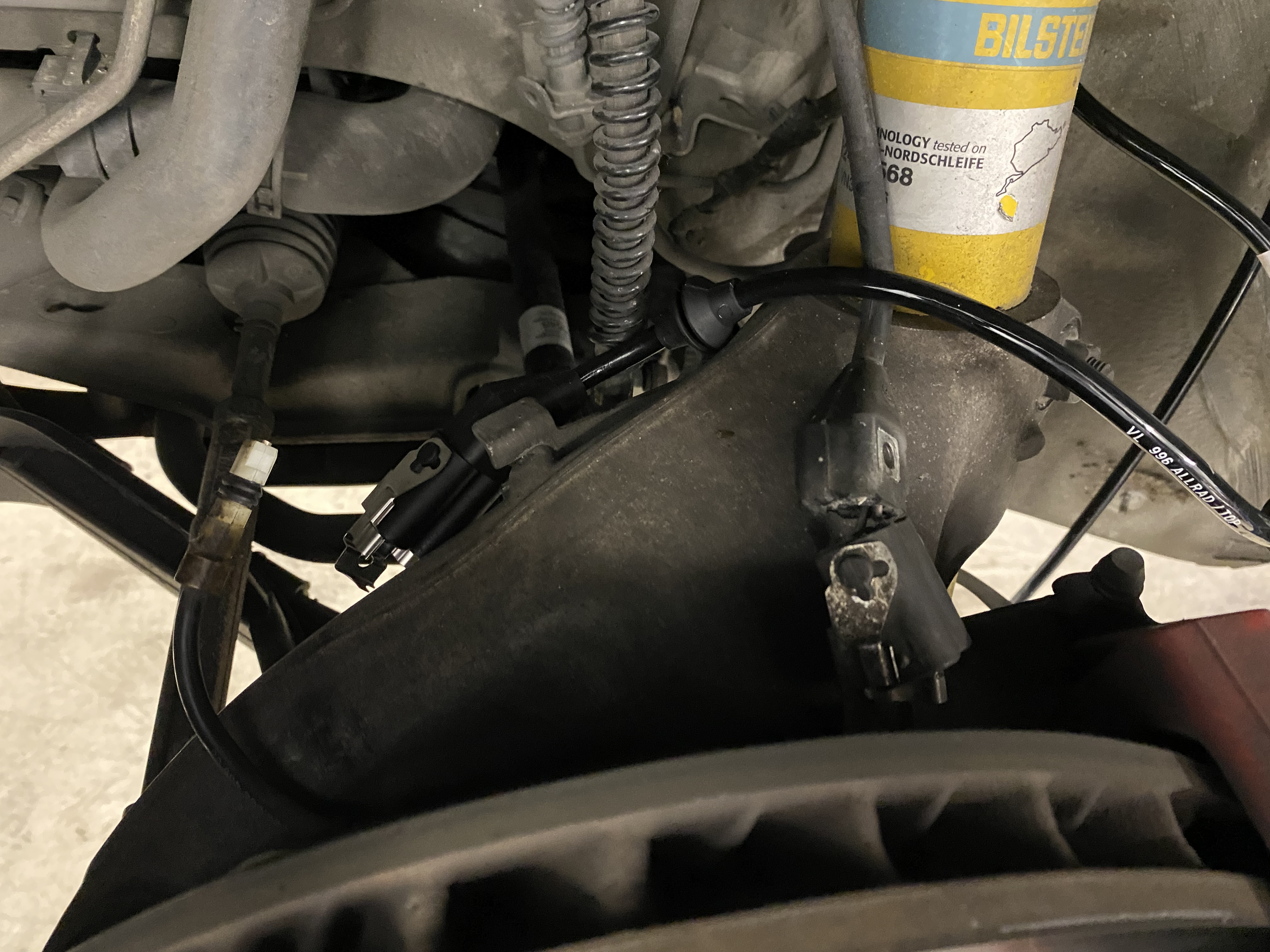

The second picture from the bottom shows the split on the harness side of the abs plug. The brake wear circuit was still intact by the abs was not, hence the P4205 code and abs/psm lights.

Joseph
