What's Inside: Sunroof Lift Mechanism

Naturally aspirated tech and talk
Post Reply
User avatar
usury
Posts: 215
Joined: Thu Sep 15, 2022 1:18 pm
Location: Seattle, WA
Has thanked: 100 times
Been thanked: 93 times
Prelude
Have you ever taken anything apart and wished you had taken better notes or photos? I have.

This post is part of a continuing series of posts that detail the internal construction of various things. This is not intended to be step-by-step instructions for repair/removal/disassembly/etc. Rather, I hope this post (and future posts) can serve as a reference for people who would like visual clues in making their own repairs.

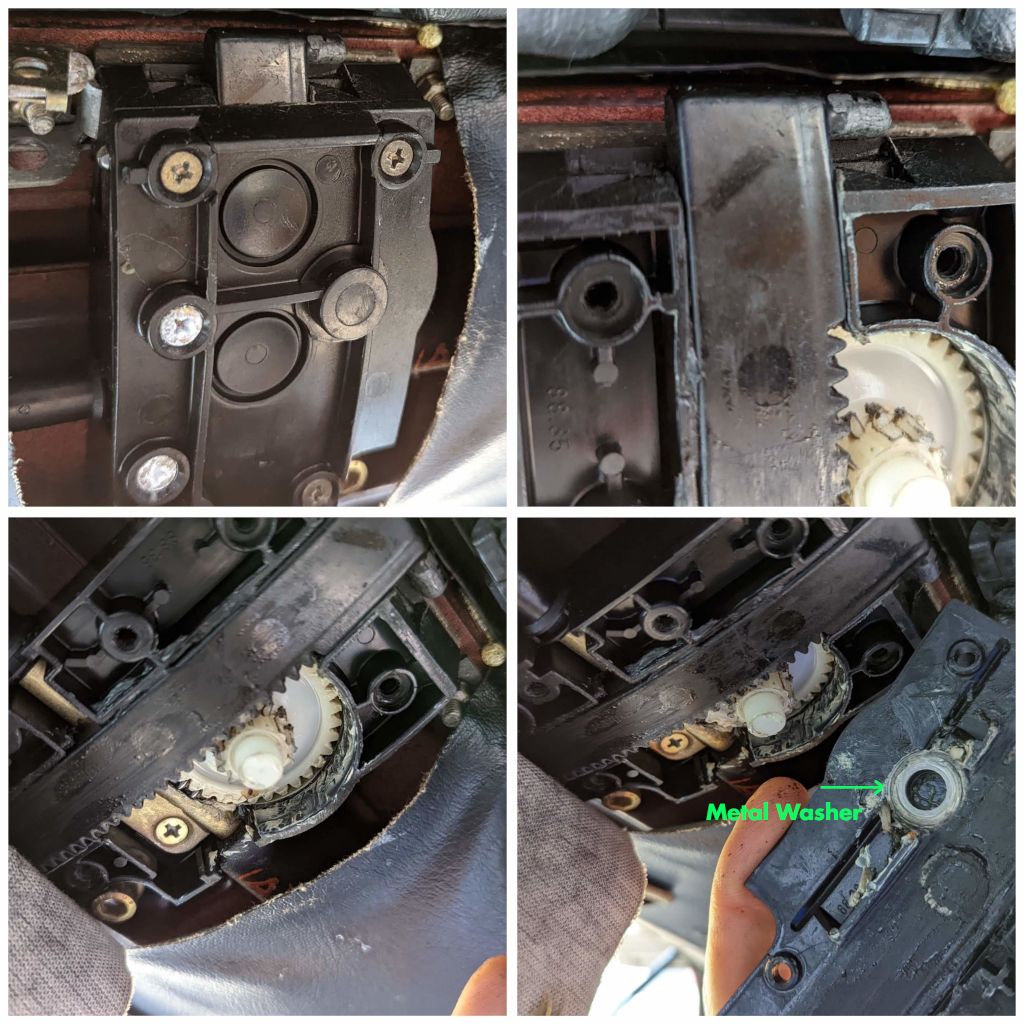

Lift Arm Box
Lift Arm Box
Lift Arm Box

Nylon Gears
Nylon Gears
Nylon Gears

Replacement Brass Gears
Brass Gears
Brass Gears
