Have you ever taken anything apart and wished you had taken better notes or photos? I have.
This is the first in a series of posts I plan to make over the coming weeks that detail the internal construction of various things. This is not intended to be step-by-step instructions for repair/removal/disassembly/etc.
Rather, I hope this post (and future posts) can serve as a reference for people who would like visual clues in making their own repairs.
Snowflake Switch
Take care, this is an assembly with a high "boing factor"

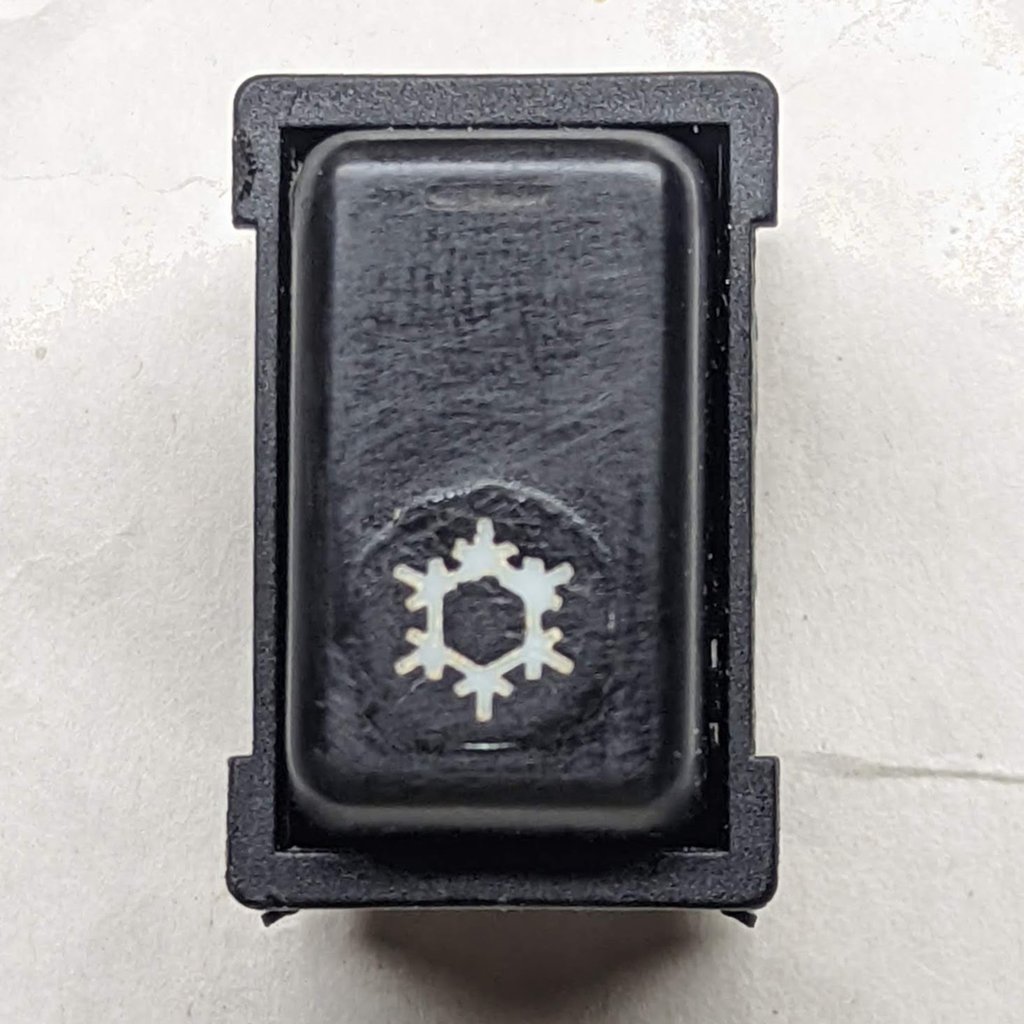

- Snowflake Switch Assembled
- PXL_20220814_211034776.jpg (201 KiB) Viewed 692 times

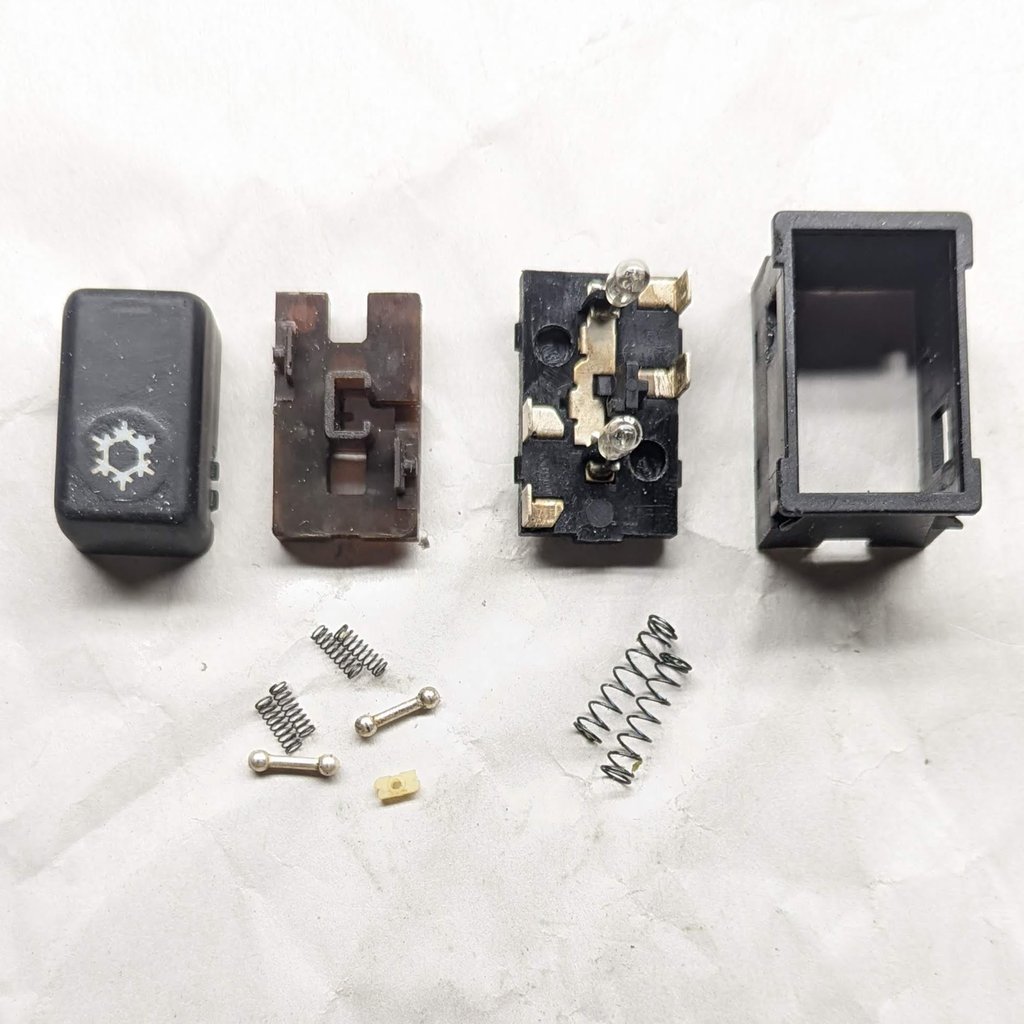

Snowflake Switch Exploded
- Snowflake Switch Exploded
- PXL_20220814_202638979.jpg (129.99 KiB) Viewed 692 times

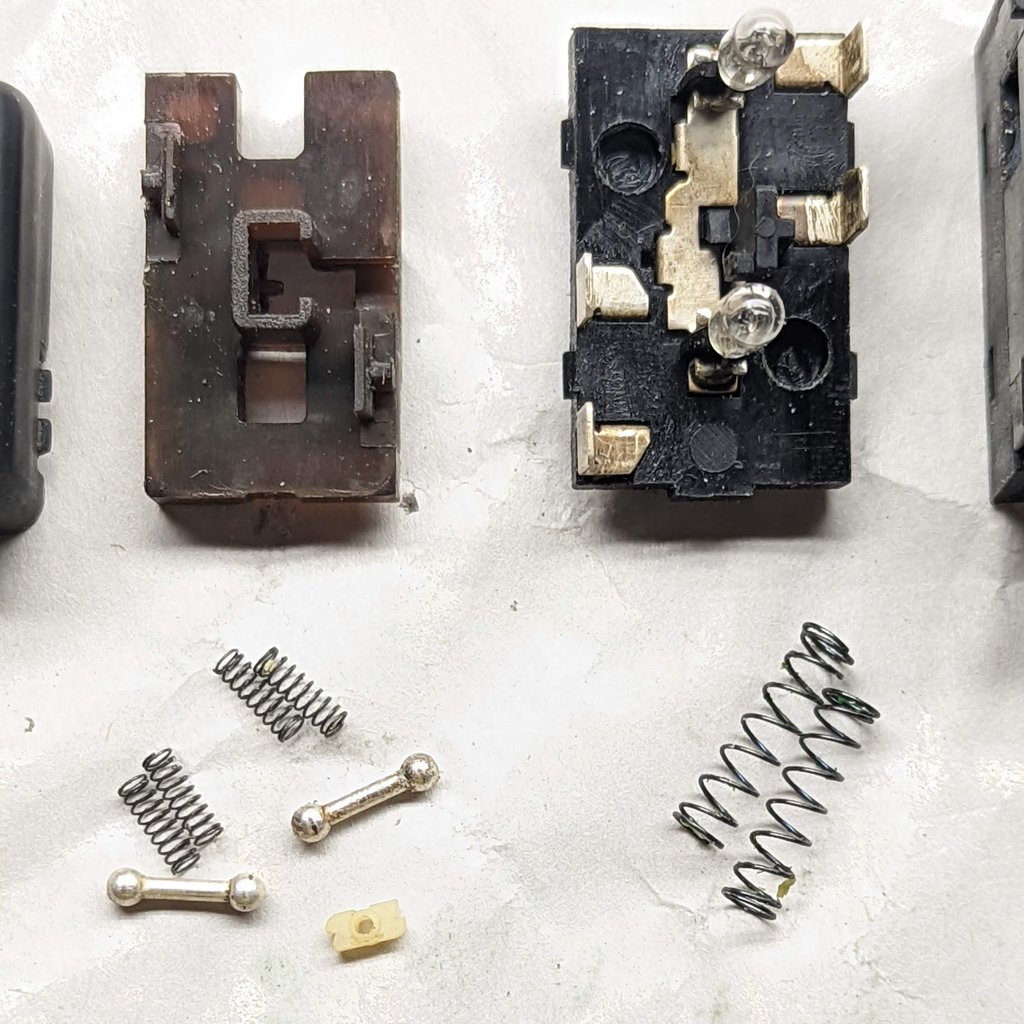

- Small Springs and Conductive Bars
- PXL_20220814_202649880.jpg (202.11 KiB) Viewed 692 times
Conductor Barbells and Springs

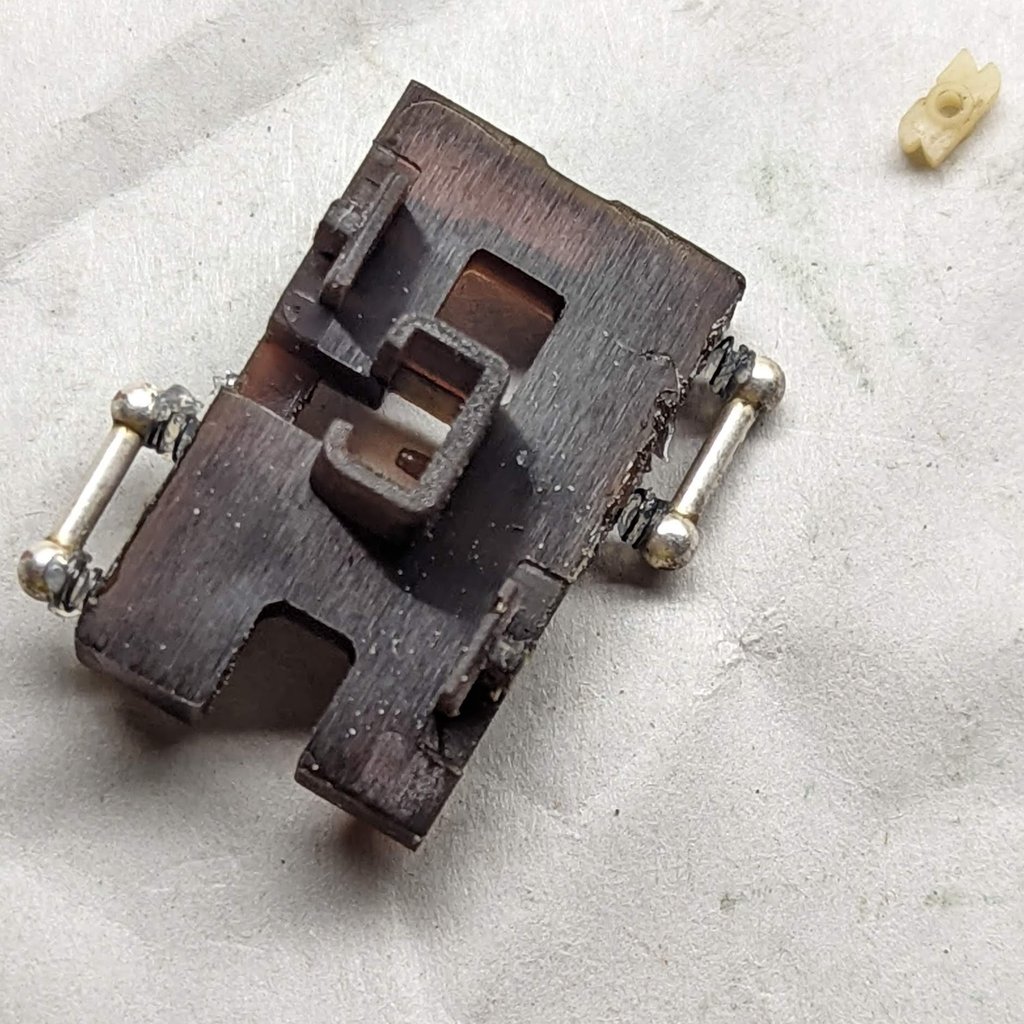

- Conductive Bars Installed 01
- PXL_20220814_203057370.jpg (201.25 KiB) Viewed 692 times

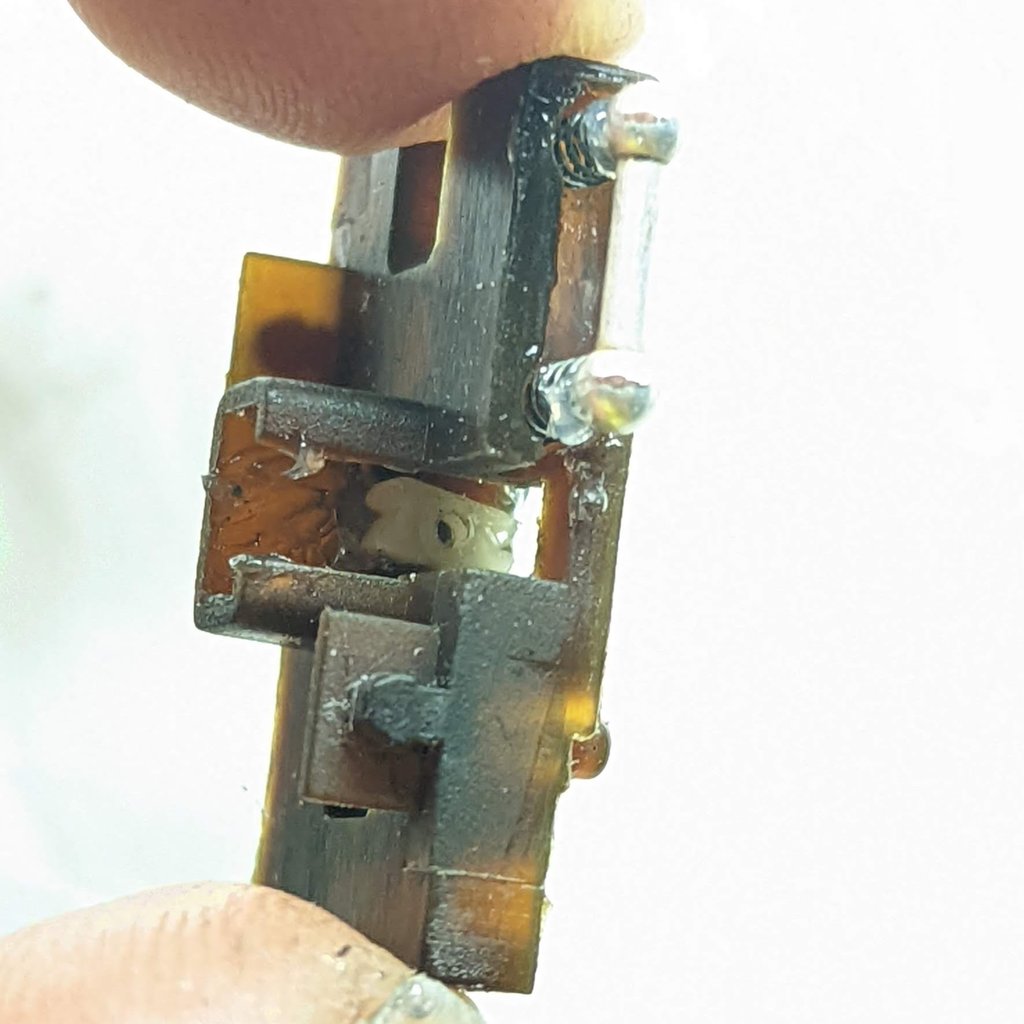

- Conductive Bars Installed 02
- PXL_20220814_203225171.jpg (158.51 KiB) Viewed 692 times
Orientation Considerations
In the photos below...

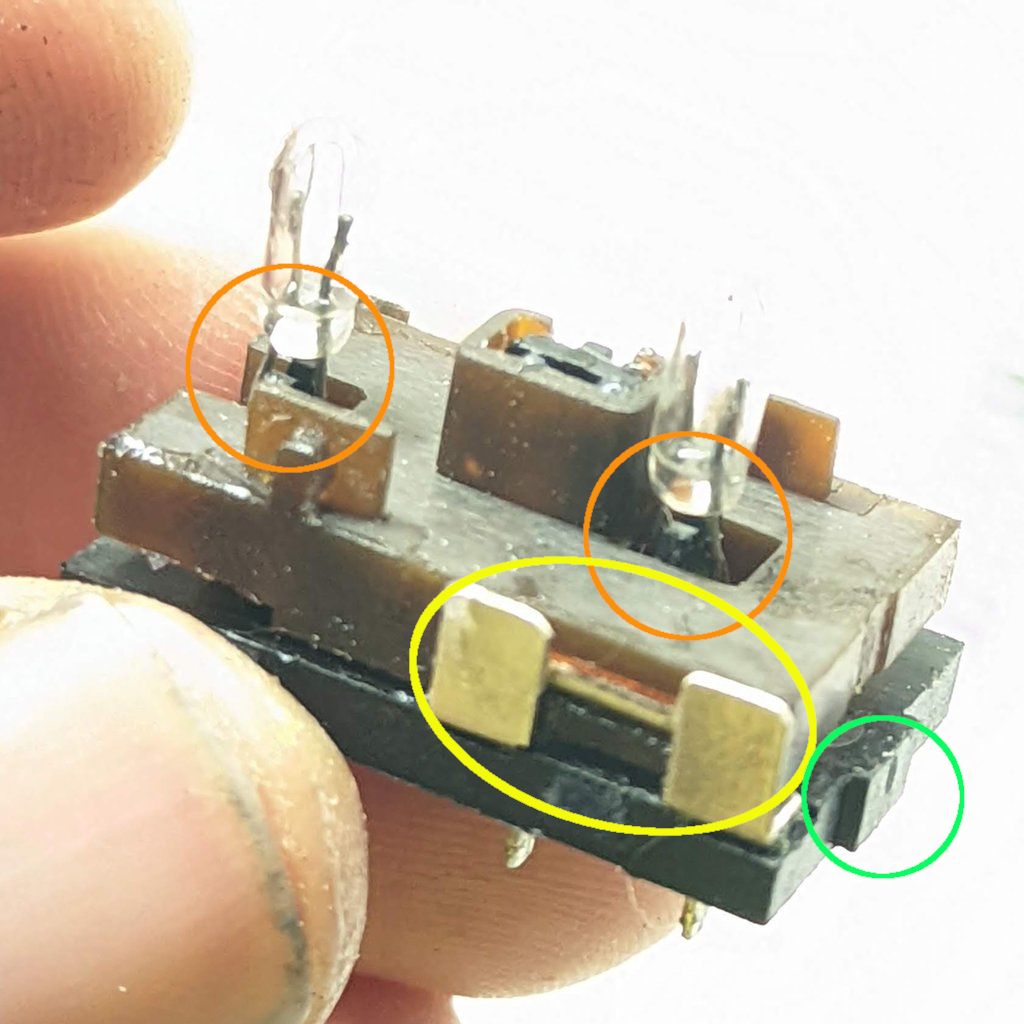

Yellow: Conductor Barbells must align with switch tabs
Orange: Holes for bulbs are different shapes (open ended vs fully enclosed)
Green: Alignment key for corresponding notch on switch outer housing
- Various Attention Areas
- PXL_20220814_203745445.jpg (113.84 KiB) Viewed 692 times

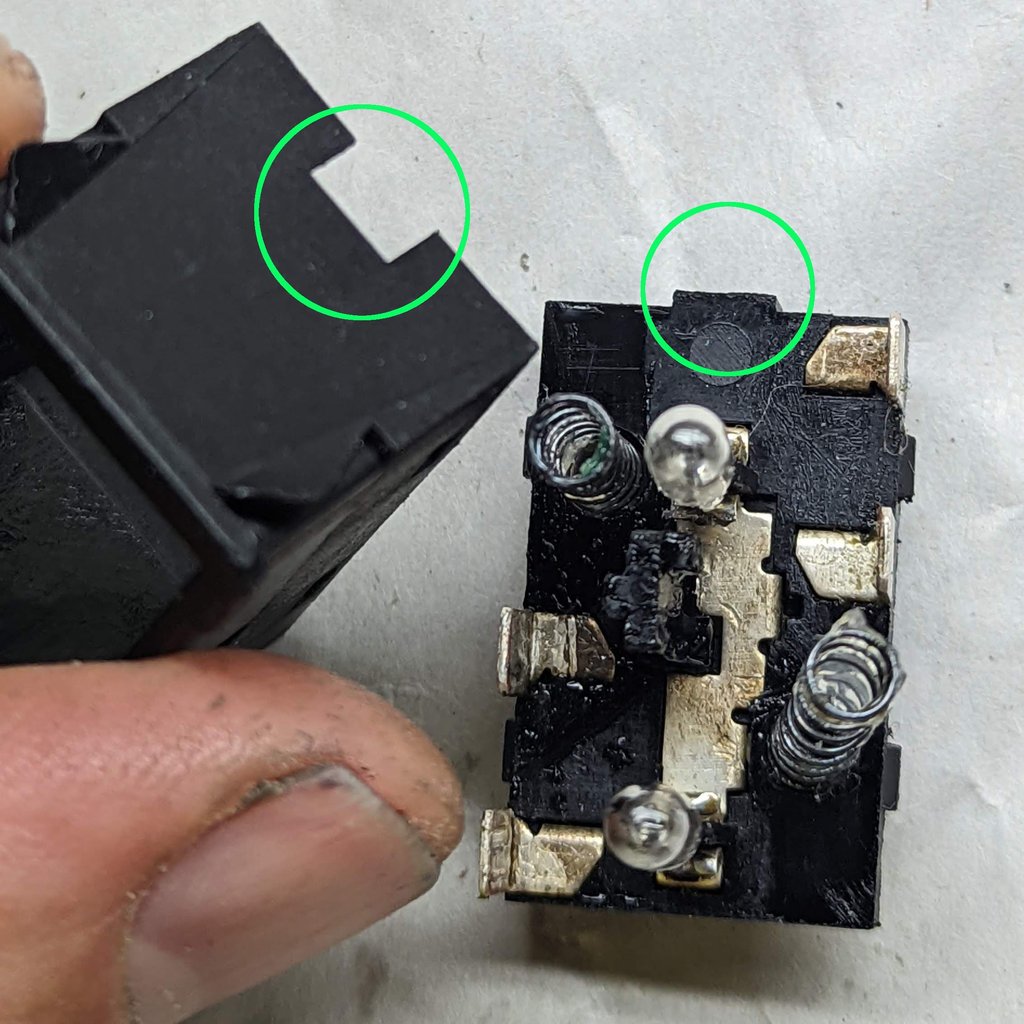

- Keyed Notches
- PXL_20220814_210144422.jpg (179.22 KiB) Viewed 692 times
