murphsea wrote: Mon Jan 24, 2022 12:21 pm Love the garage Tom, especially the floors.
Glad to have found this site too. Found Crazy Eddie online because I needed covers for my incoming GTS bucket seats.
Then saw the video of Ed being interviewed in your garage and Ed sent me to this site when I asked about the garage.

I have a new house we just built and was contemplating epoxy floors but man those tiles of yours look amazing.
Would love more info on what you used and any tips you may have.

Thanks and welcome aboard!! The tile in my garage is from Saint 'Agostino Ceramica, made in Italy. The key for a garage is to get PEI 5 porcelain (look for 5 in the abrasion resistance rating), and an anti- slip rating above .5 (above .6 is better, especially if it's going to get wet). With a lot of mfg's, you really need to track down the specs, as many like to advertise in less technical (easier to sound good) terms.... But if something is truly made to PEI 5 standards with a good anti-slip surface, it is not by accident and the mfg will be able to confirm. If they can't, chances are it has a lower rating (or would, if rated). PEI 5 with good slip resistance is hard to find. We could not find the squares for the checker pattern, for example, and ended up cutting our own squares out of bigger pieces.

https://www.ceramicasantagostino.it/it/

Since we're in California, we also put a lot of effort into getting the 'control joints' right and conforming to the warranty requirements, both with the tiles and with the concrete underneath. And we put down a membrane over the concrete and under the tiles to help prevent cracks in general and during earthquakes.... (I say 'we' but the contractor and his subs did everything -- I know less than nothing about all this, other than from my experience paying the bills :wtf: )

Hope that helps! Let me know if I can answer any questions...

#21

User avatar
murphsea
Posts: 189
Joined: Mon Jan 24, 2022 11:33 am
Location: Mount Pleasant SC
Has thanked: 83 times
Been thanked: 123 times
Thanks for the info Tom.
I like their visualization tool. Used one of the pics from the Porsche car configurator to see how my inbound Taycan would look with the tile.
2025 Porsche 718 Spyder RS
2024 Porsche 911 GT4 RS
2021 Porsche 718 Cayman GT4
1973 Porsche 914 2.0

#22

User avatar
Larry C
Posts: 1656
Joined: Wed Aug 04, 2021 6:56 pm
Location: Los Angeles
Has thanked: 592 times
Been thanked: 667 times
Looks great! I’ll take one of each please😉
2022 Cayman GTS 4.0
2019 Audi RS3 (sold)
2016 VW Golf R (sold)
2013 Audi S4 (sold)

#23

User avatar
murphsea
Posts: 189
Joined: Mon Jan 24, 2022 11:33 am
Location: Mount Pleasant SC
Has thanked: 83 times
Been thanked: 123 times
Just had a pallet of Racedeck flooring delivered so I'll be getting busy putting that down and will share pictures when I'm finished.
2025 Porsche 718 Spyder RS
2024 Porsche 911 GT4 RS
2021 Porsche 718 Cayman GT4
1973 Porsche 914 2.0

#24

User avatar
Tom
Site Admin
Posts: 8966
Joined: Fri Jun 25, 2021 2:04 pm
Location: Silicon Valley, CA
Has thanked: 942 times
Been thanked: 4028 times
Contact:
murphsea wrote: Wed Feb 16, 2022 11:03 am Just had a pallet of Racedeck flooring delivered so I'll be getting busy putting that down and will share pictures when I'm finished.
Nothing transforms a garage faster or more thoroughly than Racedeck. You'll love it. Are you doing a pattern?

p.s. If you use a table saw to cut them, STAND OFF TO THE SIDE when you cut them. Trust me! :shock: :evil: :wtf: :crazy:

#25

User avatar
murphsea
Posts: 189
Joined: Mon Jan 24, 2022 11:33 am
Location: Mount Pleasant SC
Has thanked: 83 times
Been thanked: 123 times
Tom wrote: Wed Feb 16, 2022 11:45 am
Nothing transforms a garage faster or more thoroughly than Racedeck. You'll love it. Are you doing a pattern?

p.s. If you use a table saw to cut them, STAND OFF TO THE SIDE when you cut them. Trust me! :shock: :evil: :wtf: :crazy:
Thanks for the tip on cutting them.

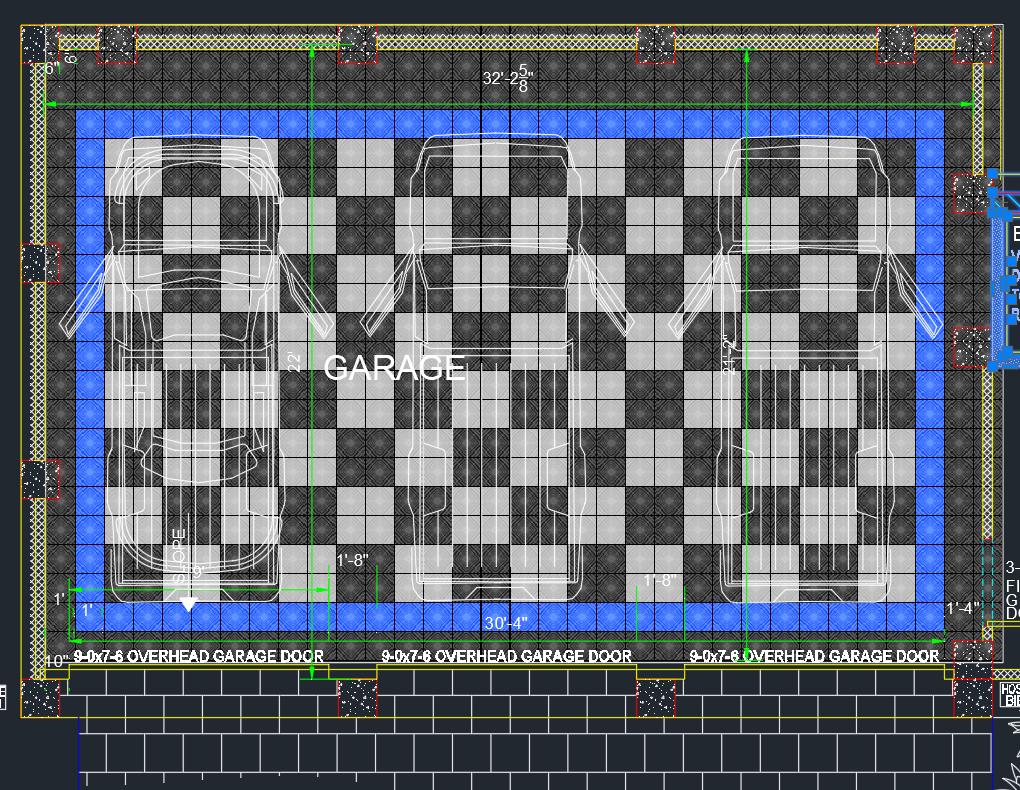

Yes, doing a pattern. It's nice to have the autocad drawings of the house so I can lay it out.
I'm doing one large rectangle as if I did 3 rectangles the center one wouldn't have lined up exactly with the center garage bay and that would have driven me mad. I like when things line up.
Using black and alloy colors for the checker pattern.
I think it should look good when it's finished.
2025 Porsche 718 Spyder RS
2024 Porsche 911 GT4 RS
2021 Porsche 718 Cayman GT4
1973 Porsche 914 2.0

#26

User avatar
Tom
Site Admin
Posts: 8966
Joined: Fri Jun 25, 2021 2:04 pm
Location: Silicon Valley, CA
Has thanked: 942 times
Been thanked: 4028 times
Contact:
Alloy is smart. I used white and they show the dirt all too easily. Should look awesome. Before and after pics are a must! :)

#27

User avatar
murphsea
Posts: 189
Joined: Mon Jan 24, 2022 11:33 am
Location: Mount Pleasant SC
Has thanked: 83 times
Been thanked: 123 times
Tom wrote: Wed Feb 16, 2022 12:16 pm Alloy is smart. I used white and they show the dirt all too easily. Should look awesome. Before and after pics are a must! :)

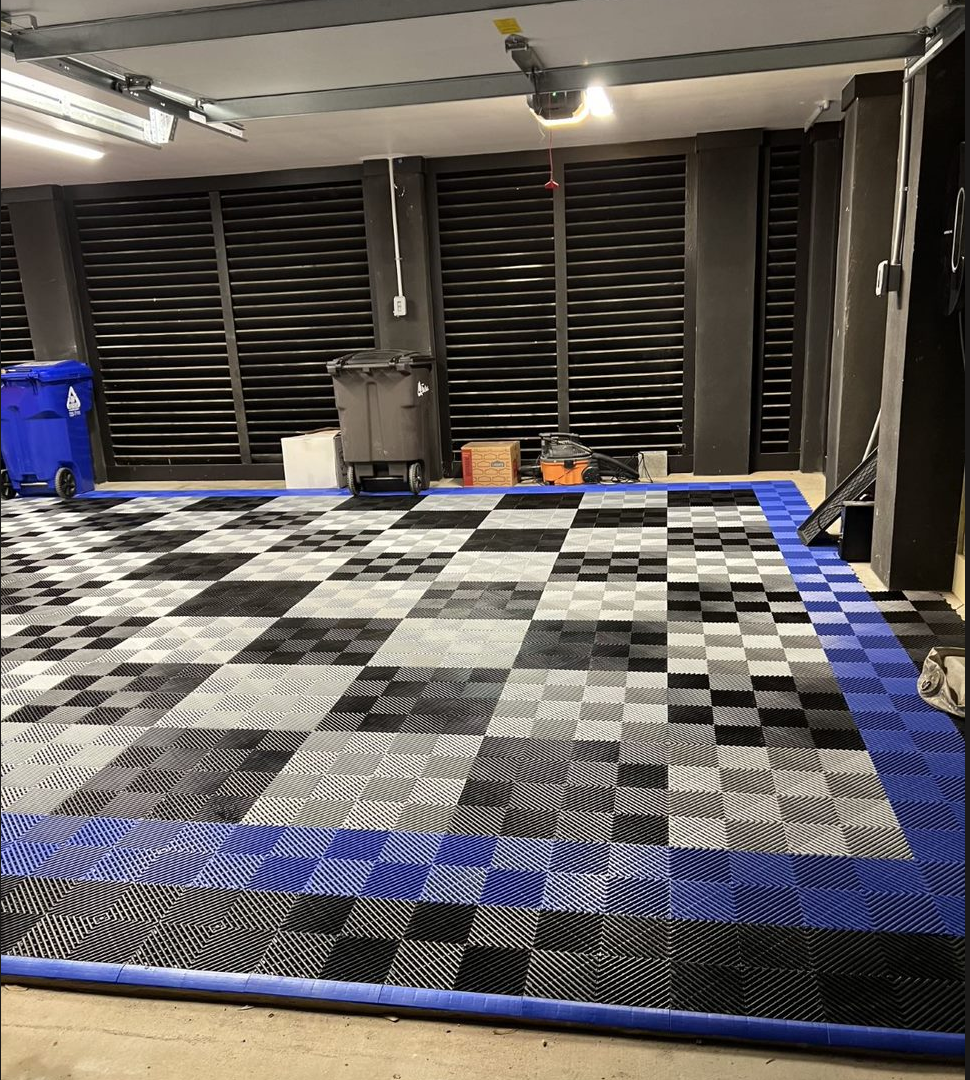

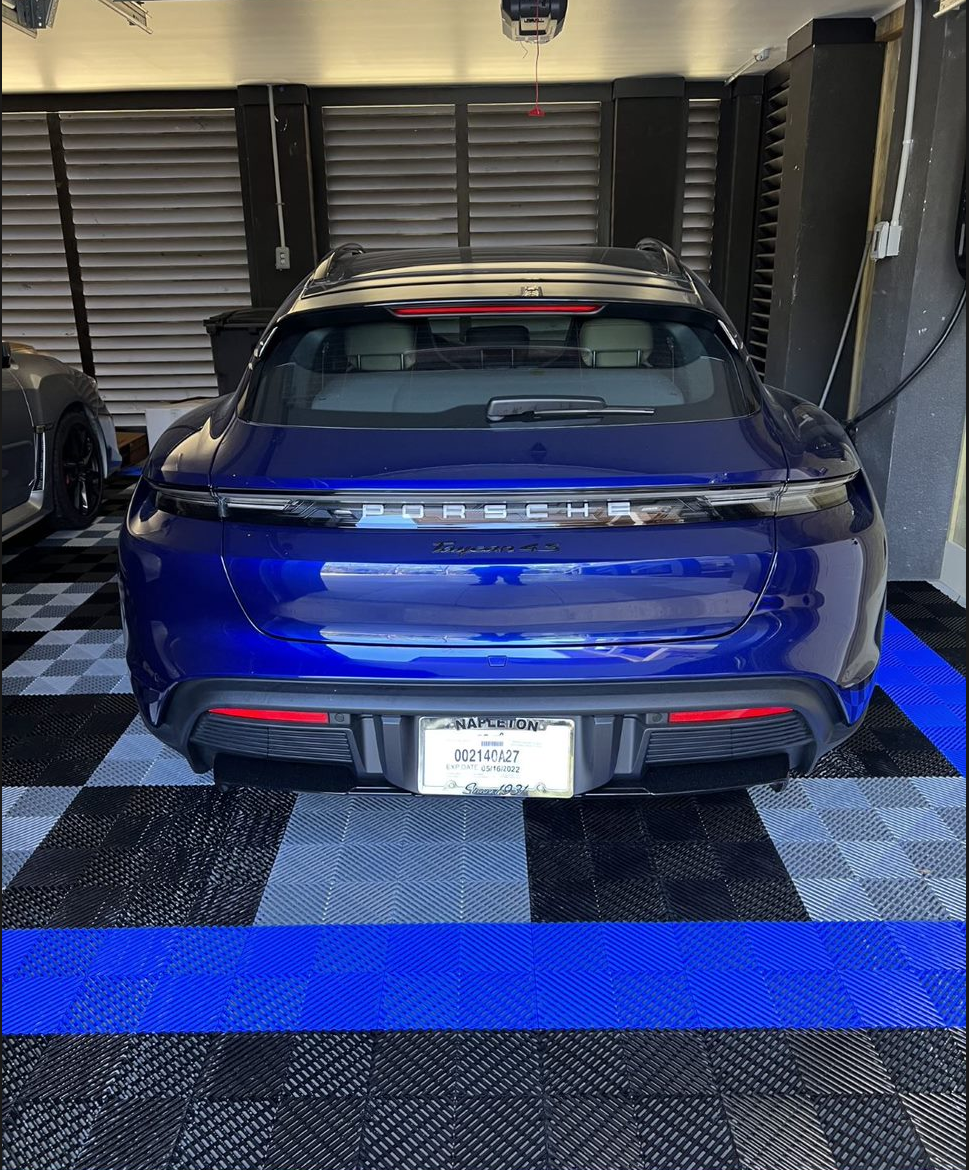

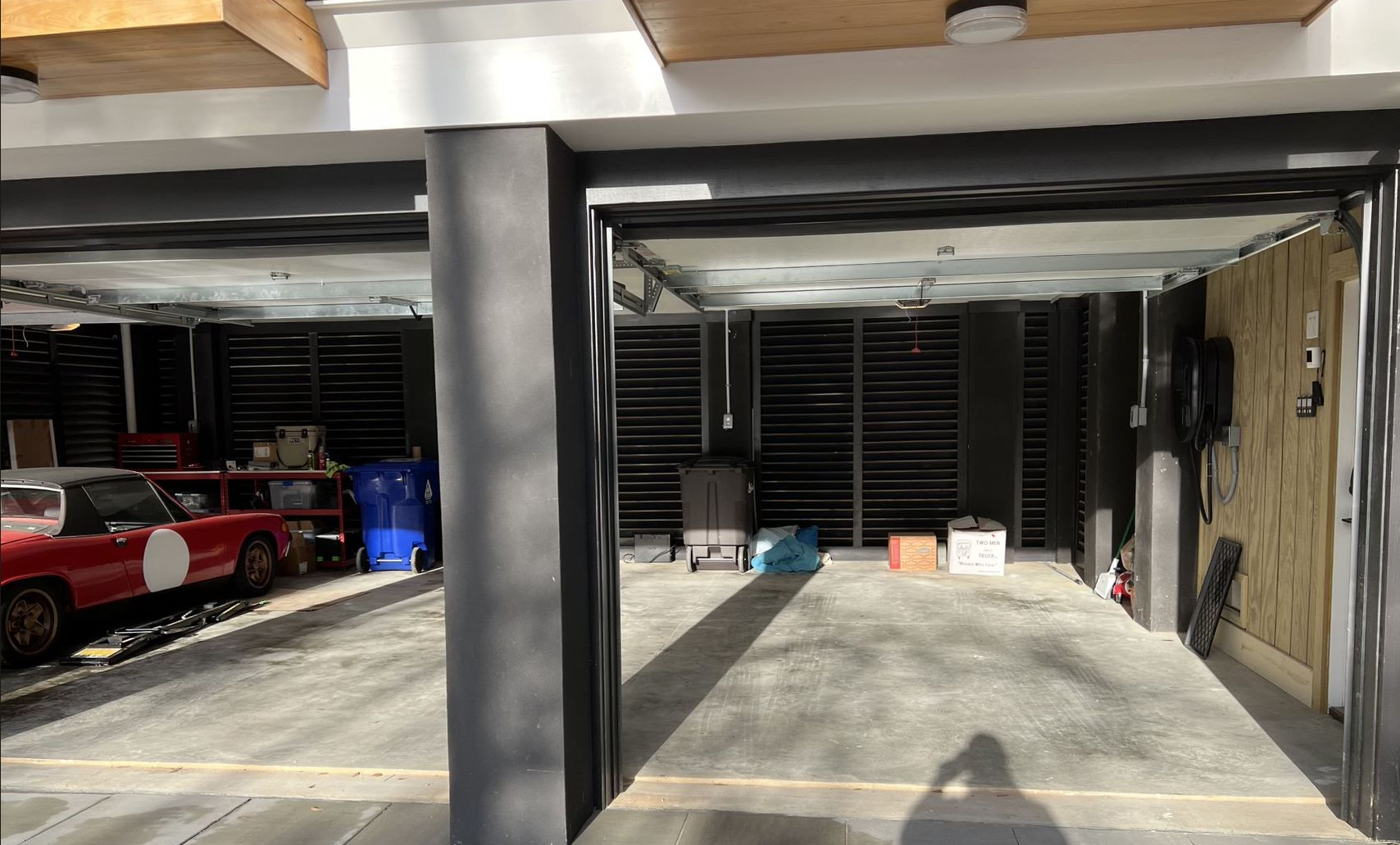

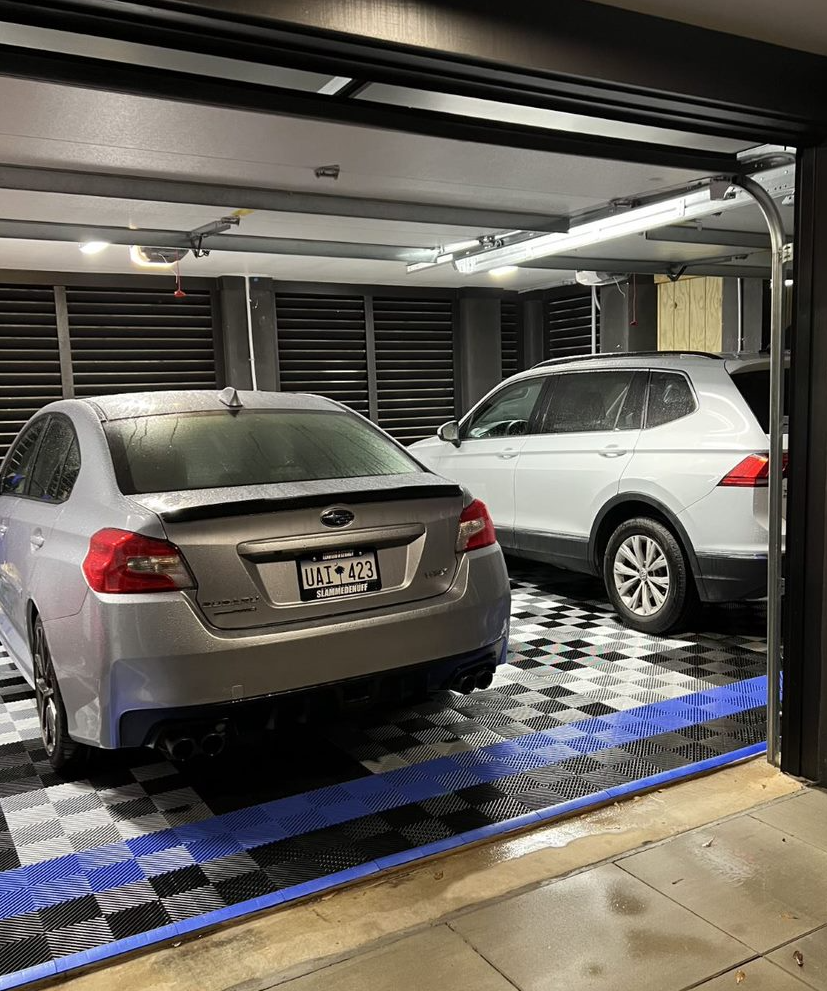

Part way done. 2 out of the 3 bays almost finished. Paused a bit now because the Taycan arrived and I'm playing with that.
Have to repaint the garage now that all the construction is finally finished but at least I have a floor now.
2025 Porsche 718 Spyder RS
2024 Porsche 911 GT4 RS
2021 Porsche 718 Cayman GT4
1973 Porsche 914 2.0

#28

User avatar
Hawk
Posts: 404
Joined: Wed Dec 15, 2021 4:14 am
Location: Florida
Has thanked: 131 times
Been thanked: 116 times
@murphsea - Looking Good! Now get back to work and finish it. ;)
Dick
2022 992 GT3 - Shark Blue, 6-speed manual, LWBs
2021 Cayenne GTS Coupe - Carmine Red / Houndstooth interior

#29

User avatar
audi4t
Posts: 473
Joined: Sat Jan 29, 2022 10:34 am
Location: Georgia / Connecticut
Has thanked: 385 times
Been thanked: 298 times
Looks great - definitely a touch of class !!!
