LCD Gauge Replacement/Intergration

Talk and Tech about turbocharged 924/944/968 cars
Post Reply
Bergerac
Posts: 322
Joined: Mon Apr 03, 2023 3:00 pm
Has thanked: 20 times
Been thanked: 121 times
Hi All,

Im starting to explore either replacing some of my gauges with LCD screens or intergrating a screen into one of the existing guages and controlling it PiDash. This will be feed data from my standalone ECU over canbus but there is also the potential for the Pi to accept signals from the exisiting wiring. The plan will be to retain the style of the analogue gauges while displaying extra data direct from the ECU.

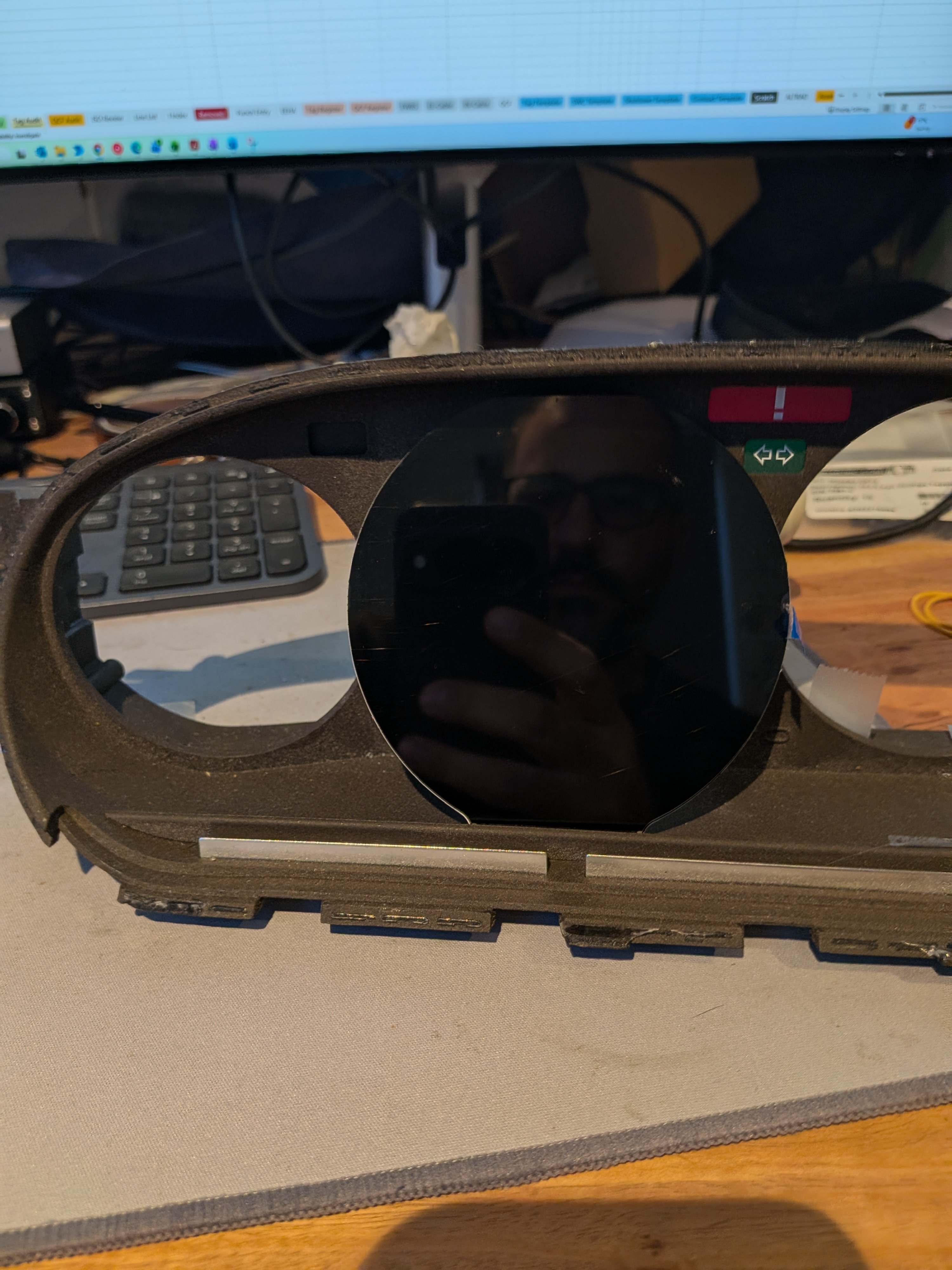

First round LCD sourced is perhaps slightly too big and will clash with the surrounding gauges/Iumination but will be used as a test mule for gauge development
Im also exploring removing a small portion of the face of the tacho, the S2/NA tachos have a decent amount of space behind to mount an LCD (not a great option for those with a Turbo)
The third option was to replace the oil pressure/battery or temp/fuel gauages, but there was a bit of a hole in the availability of round LCDs close to the correct size.

Im not sure if there is any interest but if the project is successfull, Ill look at potentially supplying a kit, this will be quite a while away though.

#1

Top
chrischrischris
Posts: 116
Joined: Mon Mar 03, 2025 11:10 am
Has thanked: 4 times
Been thanked: 29 times
I think that's a cool idea, but personally I might not want to replace any of my existing gauges. What information are you seeking to display from your ECU? As a turbo owner, I think it might be cool to replace the existing boost gauge with an identical LCD gauge that could also incorporate a tiny display of the AF ratio

#2

Top
Bergerac
Posts: 322
Joined: Mon Apr 03, 2023 3:00 pm
Has thanked: 20 times
Been thanked: 121 times
AFR, oil temperature, boost (car was originally a S2 so I dont have that gauge), boost setpoint, traction control indication/setpoint, knock indication, cruise control activation/setpoint.

I am hesitant to go too crazy with the stock gauges, otherwise I have would have gone out and just bought a full digital dash. Hopefully I find the sweet spot and remove my A pillar guage.
